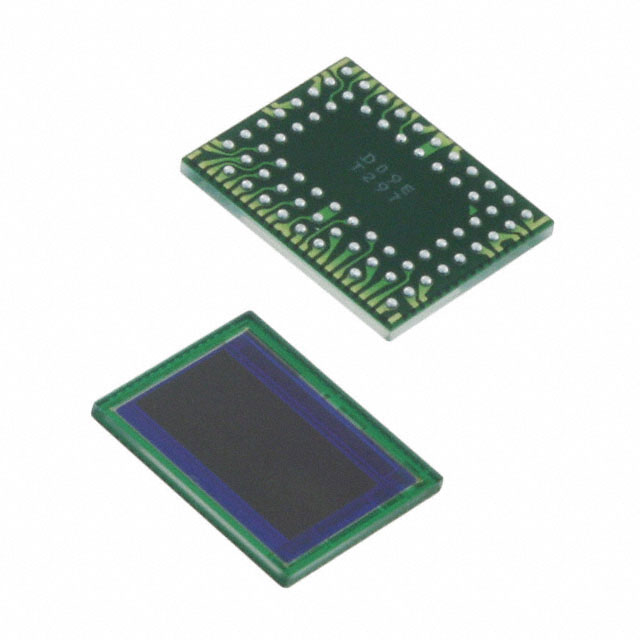

OV02710-A68A
SENSOR IMAGE CMOS 2MP 68-CSP3Manufacturer: OmniVision Technologies Inc
Categories: Image Sensors, Camera
Quality Control: Learn More
OmniVision Technologies Inc OV02710-A68A is a 2-megapixel CMOS image sensor from the OmniPixel3™ series. Featuring a 1920H x 1080V active pixel array, this sensor utilizes 3µm x 3µm pixels for high-quality image capture. The component is housed in a compact 68-CSP3 package measuring 7.46 x 5.87 mm, ideal for space-constrained applications. It supports frame rates up to 30 frames per second and operates with a 3.3V supply voltage. The OV02710-A68A is suitable for various industries including automotive, consumer electronics, and industrial imaging. Its robust design includes an operating temperature range of -30°C to 70°C.
Additional Information
Series: OmniPixel3™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Type | CMOS with Processor |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Pixel Size | 3µm x 3µm |
| Active Pixel Array | 1920H x 1080V |
| Supplier Device Package | 68-CSP3 (7.46 x 5.87) |
| Frames per Second | 30.0 |
Request a Quote
Clients Also Buy
OV02710-A68A-1E
IC SENSOR 2MP 1080 1/3"" 68CSP3
OV02715-A68A 1D
VIDEO SENSOR 68 PIN

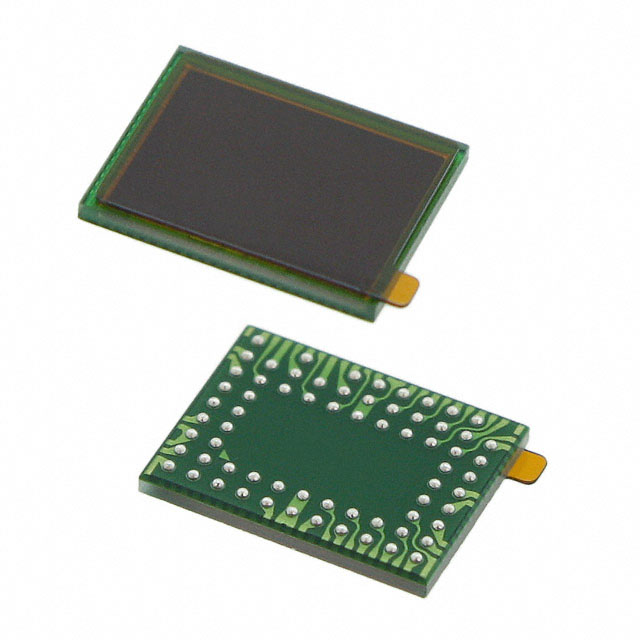

OV02715-A68A-PC
