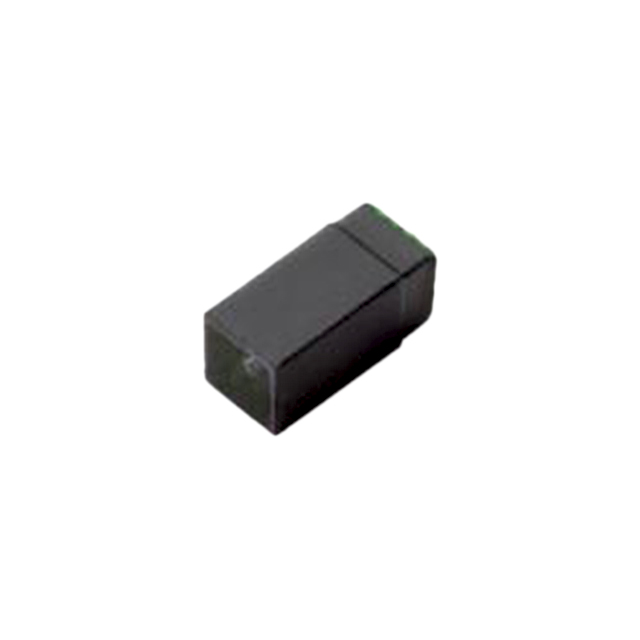

OVM6946-RANA
CAMERA CUBE CHIP 4-CSP3Manufacturer: OmniVision Technologies Inc
Categories: Camera Modules
Quality Control: Learn More
OmniVision Technologies Inc OVM6946-RANA is a CameraChip™, OmniBSI+™ CMOS sensor module featuring a 400 x 400 resolution with a 1.75µm x 1.75µm pixel size. This rolling shutter sensor provides 30 frames per second output via an analog voltage interface. The compact 1.10mm x 1.10mm 4-CSP3 package is designed for surface mounting. This component is well-suited for applications in medical imaging, particularly in minimally invasive procedures, and industrial inspection where small form factor and high-quality imaging are critical. The RGB color filter provides full-color capture capabilities. The component is supplied in tray packaging.
Additional Information
Series: CameraChip™, OmniBSI+™RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Color | RGB |
| Size / Dimension | 0.043"" L x 0.043"" W (1.10mm x 1.10mm) |
| Mounting Type | Surface Mount |
| Interface | Analog Voltage |
| Type | CMOS |
| Pixel Size | 1.75µm x 1.75µm |
| Resolution | 400 x 400 |
| Height (Max) | - |
| Supplier Device Package | Module |
| Frames per Second | 30.0 |
| Shutter | Rolling |
| Sensor | OV6946 |
| Lens Mount | - |
