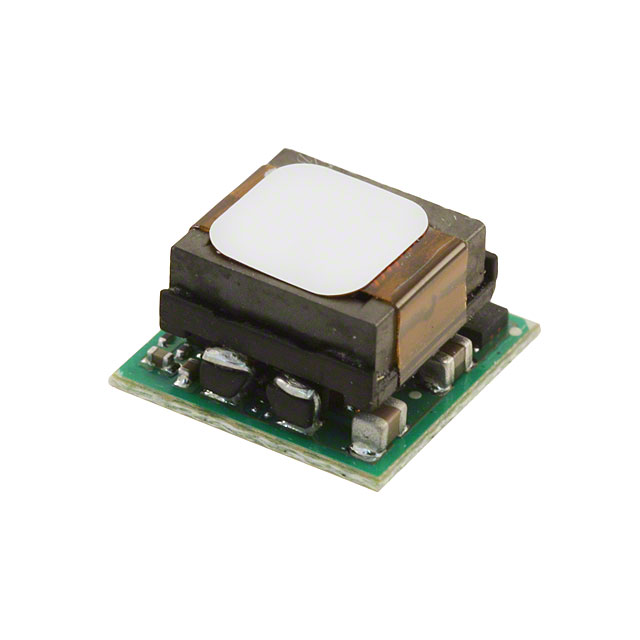

PDT006A0X3-SRZ
DC DC CONVERTER 0.5-5.5VManufacturer: OmniOn Power
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.5 ~ 5.5V 6A 3V - 14.4V Input
Additional Information
Series: PicoDLynx™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Digital with Remote On/Off and UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 17-SMD Module |
| Size / Dimension | 0.48"" L x 0.48"" W x 0.29"" H (12.2mm x 12.2mm x 7.3mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module, Digital |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 14.4V |
| Efficiency | 93.8% |
| Current - Output (Max) | 6A |
| Voltage - Input (Min) | 3V |
| Voltage - Output 1 | 0.5 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Control Features | Enable, Active Low |
| Number of Outputs | 1 |
