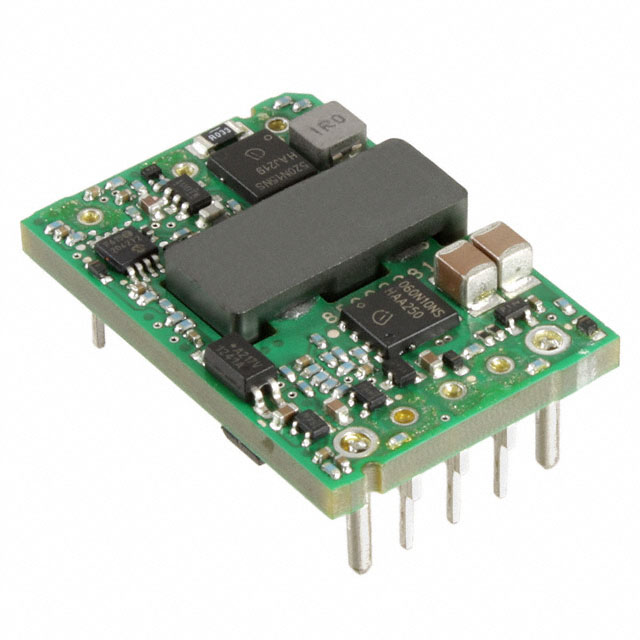

KHHD004A2B41Z
DC DC CONVERTER 12V 50WManufacturer: OmniOn Power
Categories: DC DC Converters
Quality Control: Learn More
Isolated Module DC DC Converter 1 Output 12V 4.2A 18V - 75V Input
Additional Information
Series: Hammerhead™ KHHD004A2B (50W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Packaging | Tray |
| Package / Case | 8-DIP Module |
| Size / Dimension | 1.30"" L x 0.90"" W x 0.37"" H (33.0mm x 22.9mm x 9.3mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 75V |
| Efficiency | 90% |
| Current - Output (Max) | 4.2A |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Control Features | Enable, Active Low |
| Power (Watts) | 50 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 2.25 kV |
