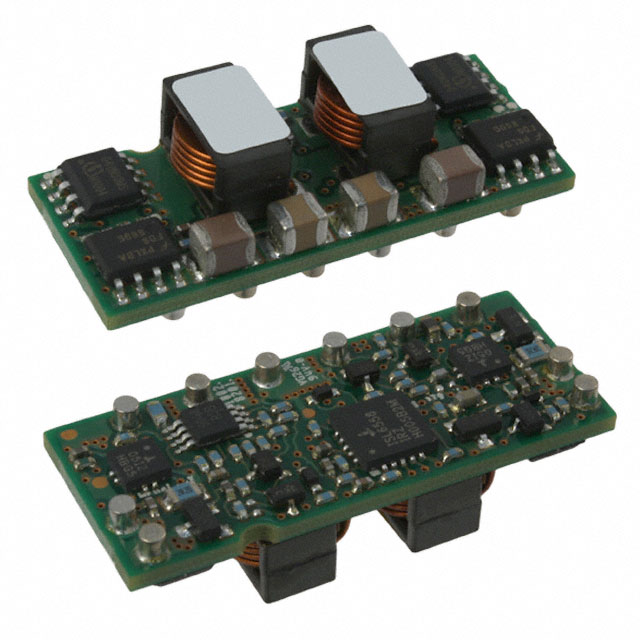

ATS030A0X3-SRPHZ
DC DC CONVERTER 0.8-2.75V 165WManufacturer: OmniOn Power
Categories: DC DC Converters
Quality Control: Learn More
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.75V 30A 6V - 14V Input
Additional Information
Series: Austin MegaLynx™RoHS Status: RoHS CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Remote On/Off, OCP, OTP, UVLO |
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-SMD Module |
| Size / Dimension | 1.30"" L x 0.36"" W x 0.53"" H (33.0mm x 9.1mm x 13.5mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 14V |
| Efficiency | 93% |
| Current - Output (Max) | 30A |
| Voltage - Input (Min) | 6V |
| Voltage - Output 1 | 0.8 ~ 2.75V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Control Features | Enable, Active Low |
| Power (Watts) | 165 W |
| Number of Outputs | 1 |
