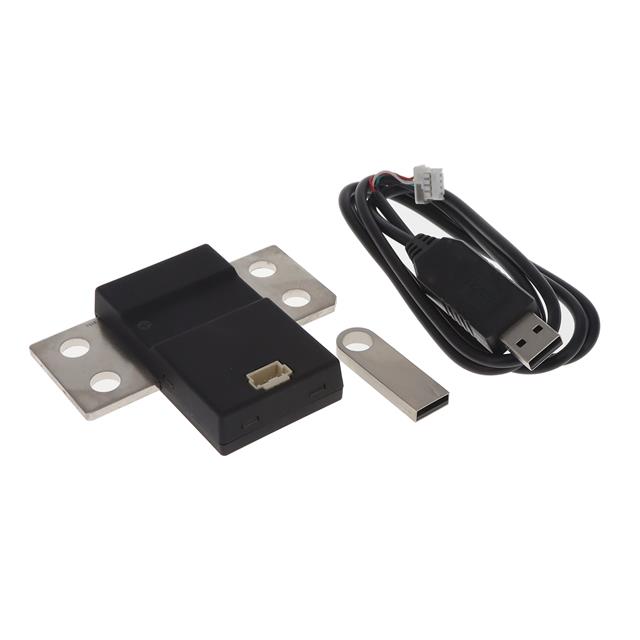

Ohmite ES-600 is a unidirectional current sensor module designed for high-current DC measurements up to 600A. This component offers exceptional accuracy with a ±0.1% specification and a linearity of 0.01%, crucial for demanding applications. Featuring a single channel for current sensing, the ES-600 operates from a 4.5V to 40V supply with a maximum consumption of 18mA. Its output signal is delivered via a CAN Bus interface, facilitating seamless integration into automotive and industrial control systems. The module is chassis mountable and rated for automotive grade, meeting AEC-Q101 qualification. Operating within a temperature range of -40°C to 105°C, the Ohmite ES-600 is suitable for applications requiring precise current monitoring in challenging environments. Its 200ms response time ensures timely data acquisition for dynamic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Polarization | Unidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | CAN Bus |
| Frequency | - |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 4.5V ~ 40V |
| Response Time | 200ms |
| Sensor Type | Current Sensor |
| Linearity | 0.01% |
| For Measuring | DC |
| Current - Supply (Max) | 18mA |
| Current - Sensing | 600A |
| Supplier Device Package | - |
| Grade | Automotive |
| Number of Channels | 1 |
| Qualification | AEC-Q101 |
