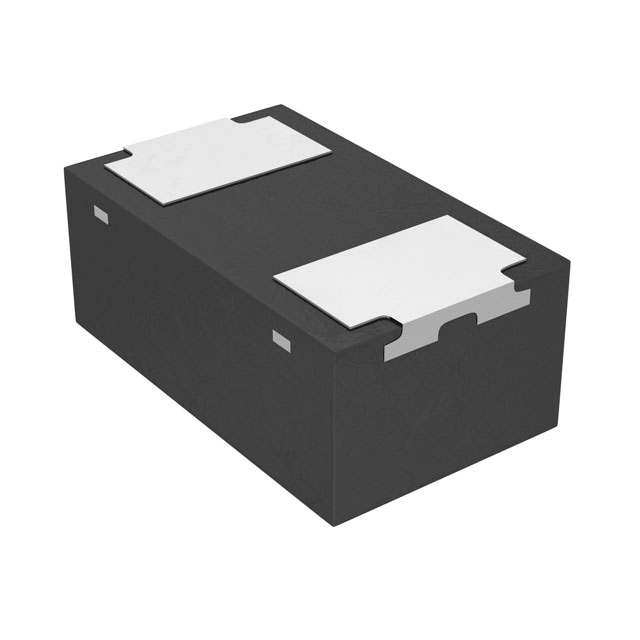

BB187LX,315
DIODE VHF VAR CAP 32V SOD882Manufacturer: NXP USA Inc.
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More
NXP USA Inc. BB187LX-315 is a single, surface-mount varactor diode designed for VHF applications. This component, packaged in an SOD-882 (SOD2) case, offers a reverse breakdown voltage of 32V. Its capacitance at a reverse voltage of 25V and frequency of 1MHz is 2.92pF, with a capacitance ratio of 11.0 (C2/C25). Suitable for operation across a temperature range of -55°C to 125°C, the BB187LX-315 is commonly utilized in tuning circuits for communication systems, including broadcast receivers and transmitters. The device is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-882 |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Capacitance @ Vr, F | 2.92pF @ 25V, 1MHz |
| Q @ Vr, F | - |
| Capacitance Ratio Condition | C2/C25 |
| Supplier Device Package | SOD2 |
| Voltage - Peak Reverse (Max) | 32 V |
| Capacitance Ratio | 11.0 |
