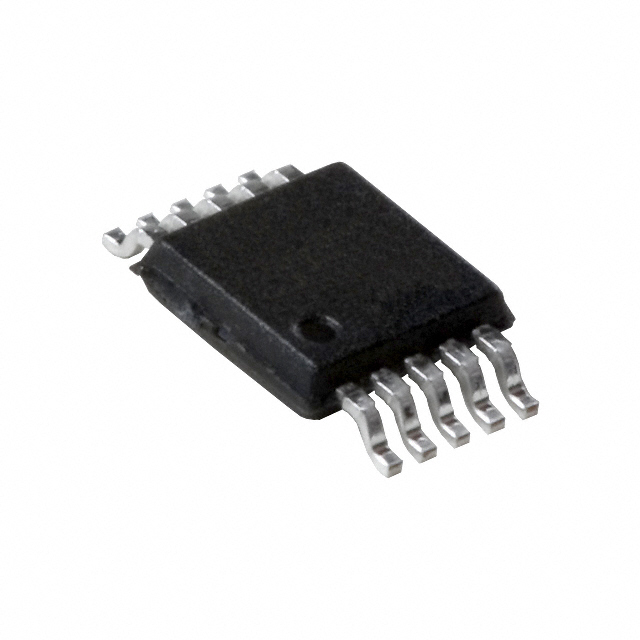

PRTR5V0U8S,118
TVS DIODE 5.5VWM 10TSSOPManufacturer: NXP USA Inc.
Categories: TVS Diodes
Quality Control: Learn More
NXP USA Inc. PRTR5V0U8S-118 is an 8-channel, rail-to-rail steering TVS diode designed for surface mount applications. This component features a reverse standoff voltage of 5.5V and a breakdown voltage of 6V. Its 10-TSSOP package, with an 0.118" (3.00mm) width, is suitable for high-density board layouts. The diode offers a typical capacitance of 1pF at 1MHz and is rated for power line protection. Operating across a temperature range of -40°C to 85°C, this TVS diode is utilized in general-purpose applications across various industries requiring robust transient voltage suppression. This device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | 1pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | 10-TSSOP |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
