PESD9X5.0L,315

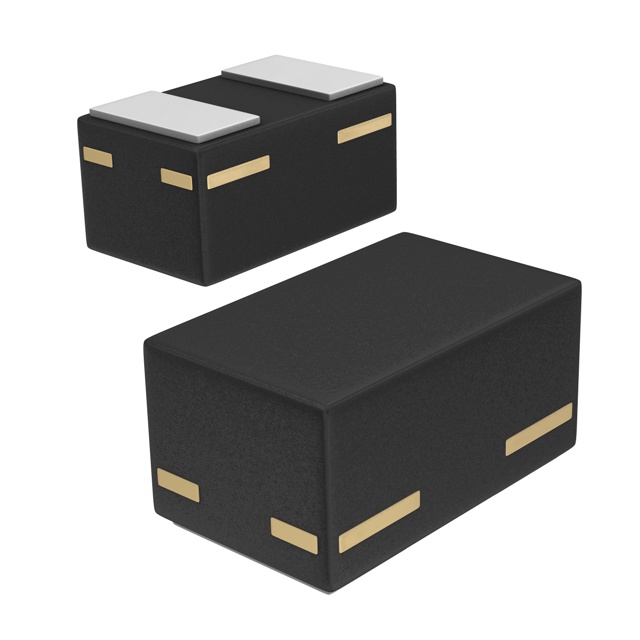

TVS DIODE 5VWM 18VC DFN1006-2Manufacturer: NXP USA Inc.
Categories: TVS Diodes
Quality Control: Learn More
NXP USA Inc. PESD9X5-0L-315 is a unidirectional transient voltage suppressor (TVS) diode designed for robust protection. This AEC-Q101 qualified component features a 5V reverse standoff voltage and a 6.2V minimum breakdown voltage. It offers a low 18V clamping voltage at a peak pulse current of 10A (8/20µs), with a peak pulse power rating of 150W. The device exhibits a typical capacitance of 68pF at 1MHz, making it suitable for high-speed data lines. Packaged in a compact DFN1006-2 (SOD-882) surface-mount format, it is supplied on tape and reel. Its operating temperature range is -55°C to 150°C. This TVS diode is commonly employed in automotive applications requiring reliable overvoltage protection.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-882 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Applications | - |
| Capacitance @ Frequency | 68pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | DFN1006-2 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.2V |
| Voltage - Clamping (Max) @ Ipp | 18V |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
