SE97TL,147
IC TEMP SENSOR DDR 3.3V 8-HXSONManufacturer: NXP USA Inc.
Categories: Thermal Management
Quality Control: Learn More

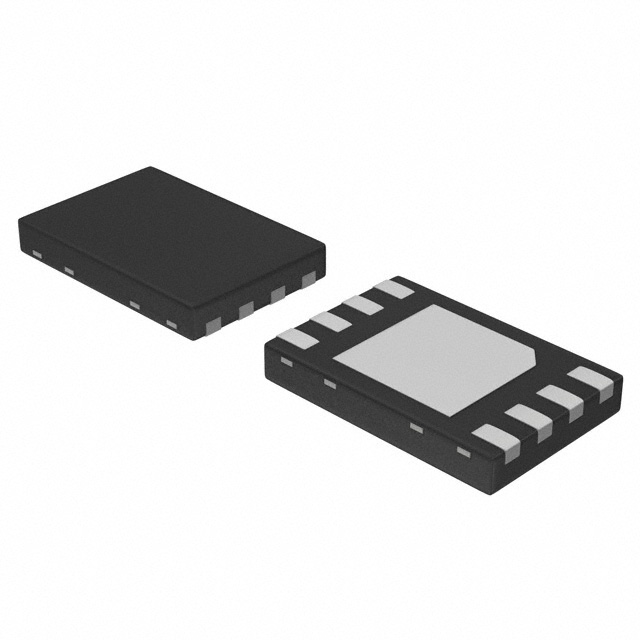

NXP USA Inc. SE97TL-147 is a temperature monitoring system designed for DDR memory applications. This internal sensor component operates within a -40°C to 125°C sensing temperature range and features an accuracy of ±3°C maximum. The SE97TL-147 utilizes an I2C/SMBus output interface and is housed in an 8-HXSON (2x3) package with an exposed pad, suitable for surface mounting. Key internal topologies include Sigma Delta ADC, comparator, and register bank. The device supports a voltage supply range of 3V to 3.6V and provides both output alarm and fan outputs. This component finds application in the computing and server industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN Exposed Pad |
| Output Type | I2C/SMBus |
| Mounting Type | Surface Mount |
| Function | Temp Monitoring System (Sensor), DIMM DDR Memory |
| Accuracy | ±3°C(Max) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 3.6V |
| Sensor Type | Internal |
| Sensing Temperature | -40°C ~ 125°C |
| Topology | ADC (Sigma Delta), Comparator, Register Bank |
| Output Alarm | Yes |
| Output Fan | Yes |
| Supplier Device Package | 8-HXSON (2x3) |
