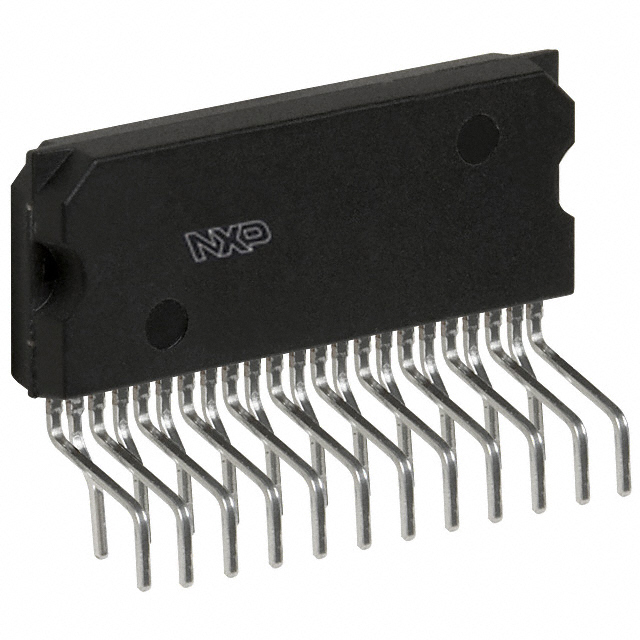

TDA3683J/N2S,112
IC REG MULTIPLE VOLTAGE DBS23PManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More
NXP USA Inc. TDA3683J-N2S-112 is a versatile Power Management Integrated Circuit (PMIC) designed for automotive applications. This component functions as an ignition buffer and a multi-voltage regulator, providing stable power for critical vehicle systems. With an operating voltage range of 9V to 18V and a low quiescent current of 300µA, it is optimized for efficiency. The TDA3683J-N2S-112 is housed in a DBS23P package with through-hole mounting, facilitating integration into existing automotive electronic control units (ECUs). Its robust design and operational temperature range of -40°C to 85°C ensure reliable performance in demanding automotive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 23-SIP Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 9V ~ 18V |
| Applications | Ignition Buffer, Regulator |
| Current - Supply | 300µA |
| Supplier Device Package | DBS23P |
