TDA3681TH/N2S,518
IC REG MULTIPLE VOLTAGE 20HSOPManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

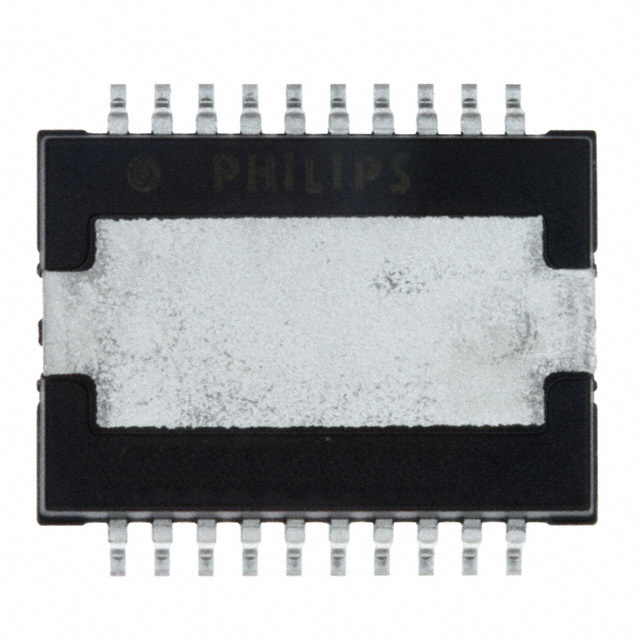

NXP USA Inc. TDA3681TH-N2S-518 is a versatile Ignition Buffer and Regulator PMIC. This component, packaged in a 20-HSOP with an exposed pad, is designed for surface mount applications. It operates within a supply voltage range of 9.5V to 18V, drawing a quiescent current of 110µA. The TDA3681TH-N2S-518 is engineered for demanding automotive applications, including ignition systems and general voltage regulation within complex electronic architectures. Its robust design and operating temperature range of -40°C to 85°C make it suitable for challenging environmental conditions. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 9.5V ~ 18V |
| Applications | Ignition Buffer, Regulator |
| Current - Supply | 110µA |
| Supplier Device Package | 20-HSOP |
