TDA3616SF/N1,112
IC VOLT REG W/BATT DETECT 9-SILManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

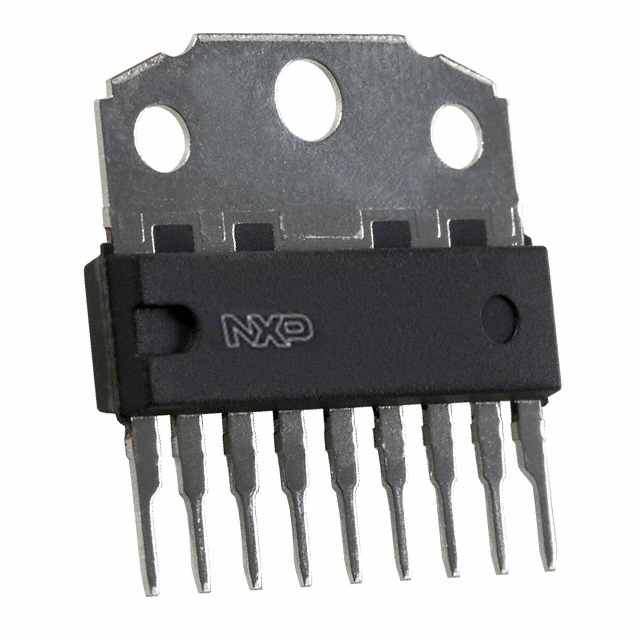

NXP USA Inc. TDA3616SF-N1-112 is a voltage regulator IC designed for processor power management applications. This component features integrated battery detection and operates within a supply voltage range of 5.6V to 25V. With a typical quiescent current of 95µA, it offers efficient power consumption. The device is housed in a 9-SIL Exposed Tab package, facilitating through-hole mounting. The TDA3616SF-N1-112 is suitable for operation across a wide temperature range, from -40°C to 105°C, making it a robust choice for demanding electronic systems. Its design is well-suited for applications where precise voltage regulation and battery monitoring are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 9-SIP Exposed Tab |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 5.6V ~ 25V |
| Applications | Processor |
| Current - Supply | 95µA |
| Supplier Device Package | 9-SIL MPF |
