MPF7100BVMA4ES
PF7100 PMIC I.MX8DXP/DXManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More
The NXP USA Inc. PF7100 is a highly integrated Power Management Integrated Circuit (PMIC) specifically designed to support i.MX 8DXP/DX processors. This device offers comprehensive power solution for demanding automotive applications. Featuring a 2.5V to 5.5V supply voltage range, the PF7100 boasts an exceptionally low current consumption of just 10µA, making it ideal for power-sensitive designs.

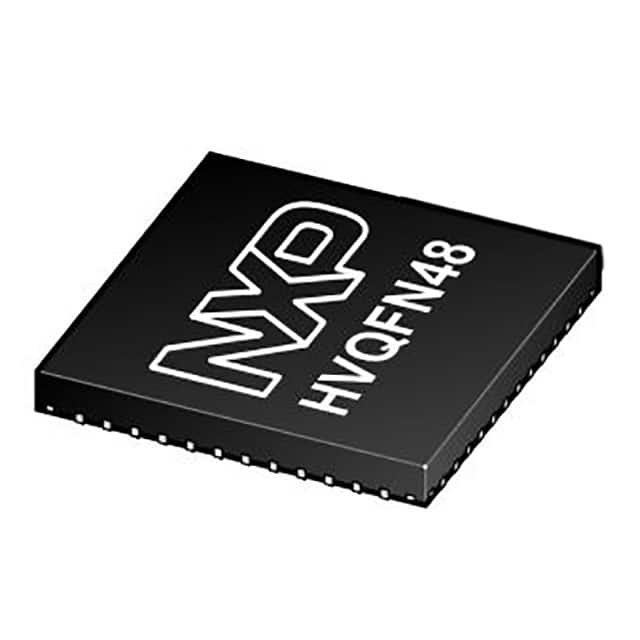

The MPF7100BVMA4ES comes in a 48-HVQFN (7x7) package with wettable flank technology for enhanced solder joint reliability in surface mount applications. It is qualified to AEC-Q100 standards, ensuring robustness and performance in automotive environments. This PMIC is engineered for applications requiring precise voltage regulation and efficient power sequencing for advanced processors, commonly found in automotive infotainment, advanced driver-assistance systems (ADAS), and digital cockpit solutions. The operating temperature range of -40°C to 125°C (TA) further underscores its suitability for automotive use.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | i.MX Processors |
| Current - Supply | 10µA |
| Supplier Device Package | 48-HVQFN (7x7) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
