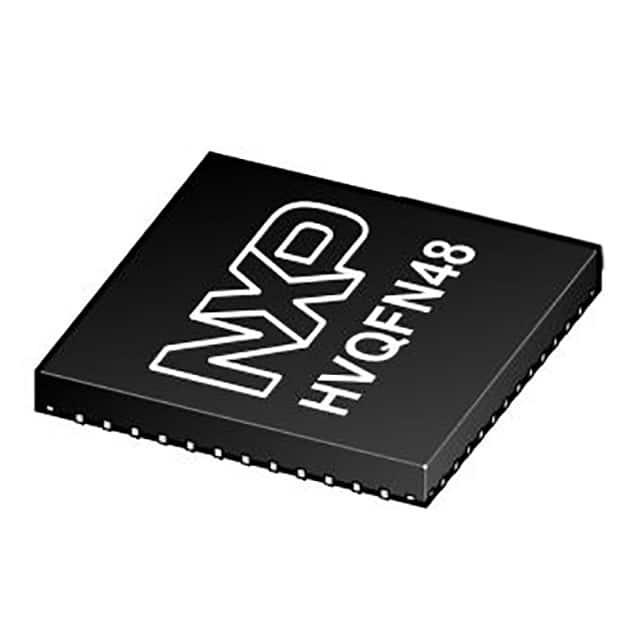

MPF7100BVMA3ES
PF7100 PMIC I.MX8DXP/DXManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More
NXP USA Inc. presents the PF7100, a specialized power management integrated circuit (PMIC) designed to support i.MX 8DXP/DX processors. This component, identified by part number MPF7100BVMA3ES, is housed in a 48-HVQFN (7x7) package with an exposed pad, facilitating efficient thermal management. Engineered for demanding applications, the PF7100 operates within a voltage supply range of 2.5V to 5.5V and features a low supply current of 10µA. Its surface mount, wettable flank mounting type ensures robust assembly. Qualified to AEC-Q100 standards and designed for automotive grade environments, this PMIC operates reliably across a temperature range of -40°C to 125°C (TA). The PF7100 is suitable for use in automotive infotainment systems and advanced driver-assistance systems (ADAS).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | i.MX Processors |
| Current - Supply | 10µA |
| Supplier Device Package | 48-HVQFN (7x7) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
