MPF7100BVMA1ES
PF7100 PMIC I.MX8XLManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

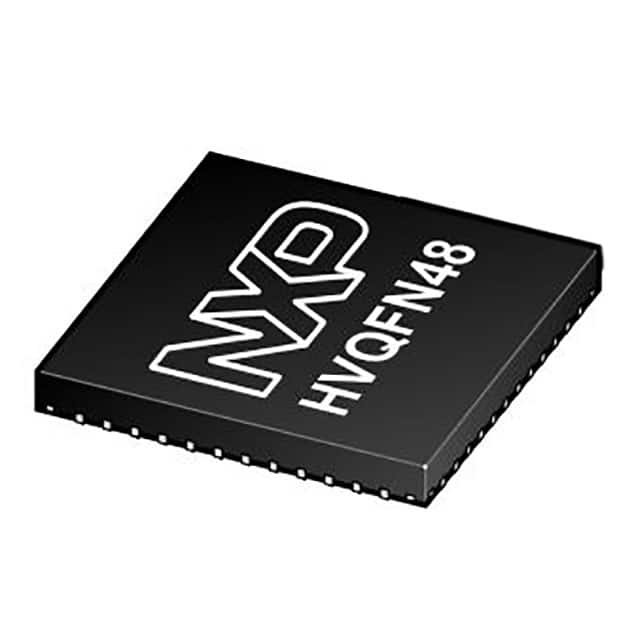

The NXP USA Inc. PF7100 is a Power Management Integrated Circuit (PMIC) designed for i.MX Processors, specifically supporting the i.MX 8XL family. This device is qualified to AEC-Q100 standards, ensuring its suitability for demanding automotive applications. Featuring a 48-HVQFN (7x7) package with an exposed pad for enhanced thermal performance, the PF7100 offers surface mount, wettable flank mounting. It operates within a supply voltage range of 2.5V to 5.5V and exhibits a low supply current of 10µA. The operating temperature range is -40°C to 125°C (TA). This component is commonly utilized in automotive infotainment, advanced driver-assistance systems (ADAS), and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | i.MX Processors |
| Current - Supply | 10µA |
| Supplier Device Package | 48-HVQFN (7x7) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
