MPF7100BVMA0ES
PF7100 PMIC OTPManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

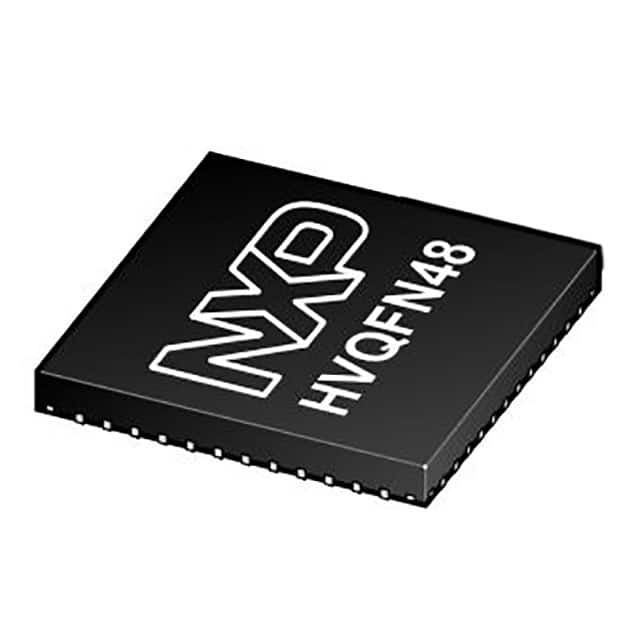

The NXP USA Inc. PF7100 Power Management IC, identified by part number MPF7100BVMA0ES, is a specialized component designed for high-performance applications. This device is optimized for use with i.MX processors, offering robust power management capabilities. It features a 48-VFQFN Exposed Pad package, specifically a 48-HVQFN (7x7), suitable for surface mount applications with wettable flanks. The operating temperature range is -40°C to 125°C (TA), and it operates from a supply voltage of 2.5V to 5.5V, with a low current supply of just 10µA. This component is qualified to AEC-Q100 standards, indicating its suitability for automotive-grade requirements. The MPF7100BVMA0ES is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Applications | i.MX Processors |
| Current - Supply | 10µA |
| Supplier Device Package | 48-HVQFN (7x7) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
