MFS5600AMMA7ES
IC BUCK QM 5.0V / 3.3V 32-QFNManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

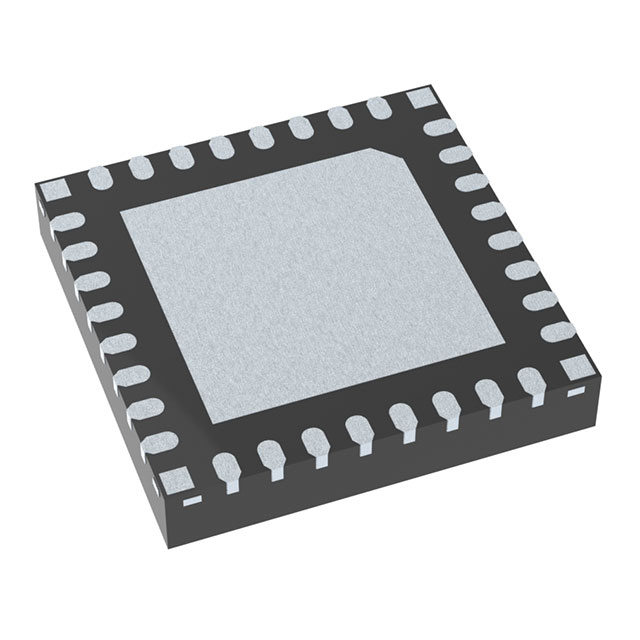

NXP USA Inc. MFS5600AMMA7ES is a highly integrated Power Management IC (PMIC) housed in a 32-HVQFN (5x5) package with an exposed pad. This automotive-grade component offers dual output voltage regulation, capable of providing 5.0V and 3.3V from a single buck converter. Designed for efficient power delivery, it operates with a low quiescent current of 140µA. The MFS5600AMMA7ES supports a wide input voltage range from 2.7V to 36V, making it suitable for demanding automotive applications. Its surface mount, wettable flank mounting type and AEC-Q100 qualification ensure reliability and ease of integration in complex designs. The operating temperature range is -40°C to 125°C (TA). This component is typically utilized in automotive systems requiring robust and precise power control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.7V ~ 36V |
| Applications | - |
| Current - Supply | 140µA |
| Supplier Device Package | 32-HVQFN (5x5) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
