MC33FS5502Y3ESR2
HIGH VOLTAGE PMIC QFN56Manufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

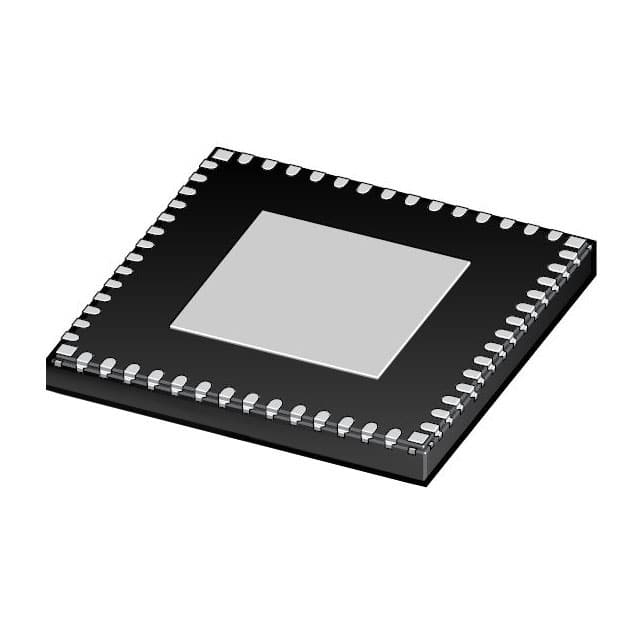

NXP USA Inc. MC33FS5502Y3ESR2 is a high-voltage Power Management Integrated Circuit (PMIC) designed for demanding automotive applications. This 56-lead HVQFN (8x8) package, featuring wettable flank surface mount technology and an exposed pad, is qualified to AEC-Q100 standards. It supports a wide supply voltage range up to 60V and operates with a typical supply current of 15mA across an extended temperature range of -40°C to 125°C. The MC33FS5502Y3ESR2 is supplied in Tape & Reel packaging, making it suitable for automated assembly processes in automotive power supply systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 60V |
| Applications | Power Supplies |
| Current - Supply | 15mA |
| Supplier Device Package | 56-HVQFN (8x8) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
