MC33909L3AD
SBC 3V 1CAN 0LIN 6SG HLQFP48Manufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More

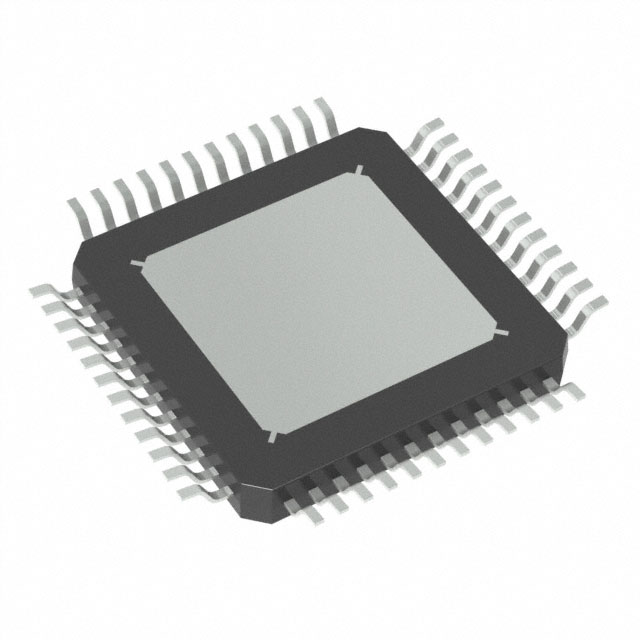

NXP USA Inc. MC33909L3AD is a System Basis Chip (SBC) designed for robust power management and control in automotive and industrial applications. This 48-LQFP-EP (7x7) packaged component integrates multiple functionalities, including one CAN interface and zero LIN interfaces, alongside six switchable gate outputs. Operating within a supply voltage range of 3.5V to 28V, the MC33909L3AD offers a typical quiescent current of 7mA. Its surface mount design and operating temperature range of -40°C to 125°C make it suitable for demanding electronic systems. The HLQFP48 package provides an exposed pad for enhanced thermal performance.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3.5V ~ 28V |
| Applications | System Basis Chip |
| Current - Supply | 7mA |
| Supplier Device Package | 48-LQFP-EP (7x7) |
Request a Quote
