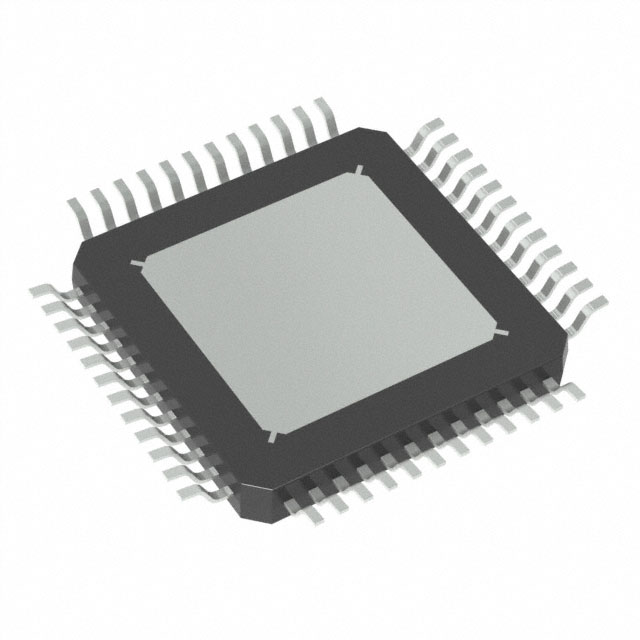

MC33813AE
IC CTRL SMALL ENG 1CYL 48LQFPManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More
The NXP USA Inc. MC33813AE is a power management integrated circuit designed for small engine applications. This component, housed in a 48-LQFP-EP (7x7) package, operates within a voltage supply range of 4.5V to 36V and features a typical current consumption of 10mA. Its surface mount configuration facilitates efficient board assembly. The MC33813AE is engineered for reliable operation across a wide temperature spectrum, from -40°C to 125°C, making it suitable for demanding environments. Its primary application focus is on controlling power within single-cylinder small engine systems. This device is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-LQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 36V |
| Applications | Small Engine |
| Current - Supply | 10mA |
| Supplier Device Package | 48-LQFP-EP (7x7) |
