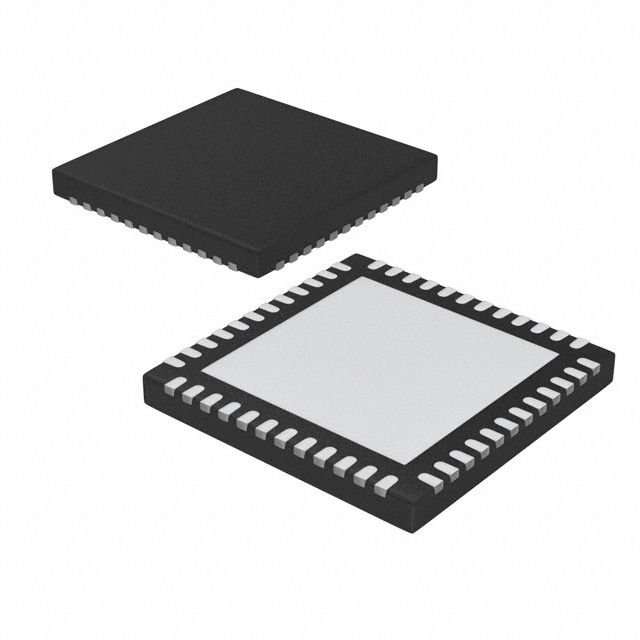

PTN3300AHF2,518
IC INTERFACE SPECIALIZED 48HWQFNManufacturer: NXP USA Inc.
Categories: Specialized
Quality Control: Learn More
NXP USA Inc. PTN3300AHF2-518: A specialized interface IC designed for DVI and HDMI level switching applications. This component facilitates robust signal integrity in high-definition multimedia interfaces. It operates within a voltage supply range of 3V to 3.6V and features an I2C interface for control. The PTN3300AHF2-518 is supplied in a 48-HWQFN (7x7) package, utilizing a surface mount mounting type. This device is commonly found in consumer electronics, personal computers, and display systems requiring reliable digital video transmission. The package is provided on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Voltage - Supply | 3V ~ 3.6V |
| Applications | DVI, HDMI Level Switching |
| Supplier Device Package | 48-HWQFN (7x7) |
