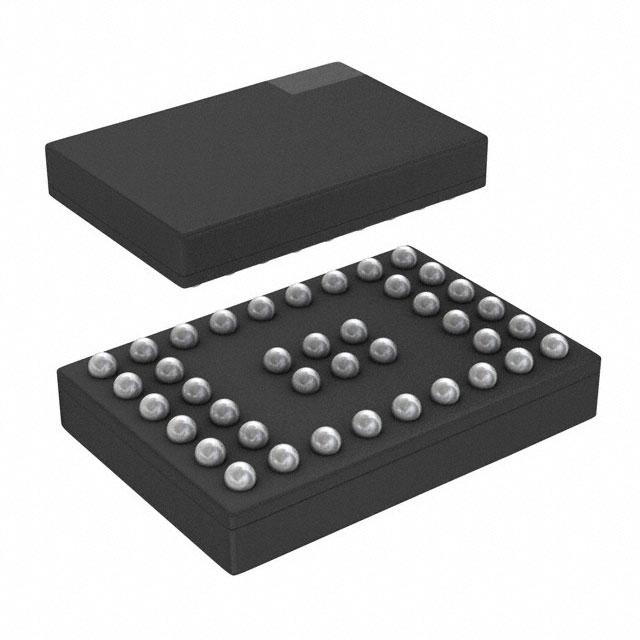

CBTL08GP053EVAZ
IC MUX CROSSBAR SW USB VFBGA40Manufacturer: NXP USA Inc.
Categories: Special Purpose
Quality Control: Learn More
NXP USA Inc. CBTL08GP053EVAZ is a high-performance USB switch IC. This component features a 4-channel multiplexer/demultiplexer configuration designed for USB 3.1 Gen 1 (5Gbps) and USB 2.0 applications. With a -3dB bandwidth of 8.5GHz, it ensures signal integrity for high-speed data transmission. The CBTL08GP053EVAZ operates from a single 1.8V supply and offers a maximum on-state resistance of 10 Ohms. Its 40-VFBGA (4.75x3.25) package facilitates efficient surface mounting. This device is suitable for demanding applications in automotive infotainment systems, consumer electronics, and industrial automation where reliable USB connectivity is critical. The part is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFBGA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Applications | USB |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 8.5GHz |
| Supplier Device Package | 40-VFBGA (4.75x3.25) |
| Voltage - Supply, Single (V+) | 1.8V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
