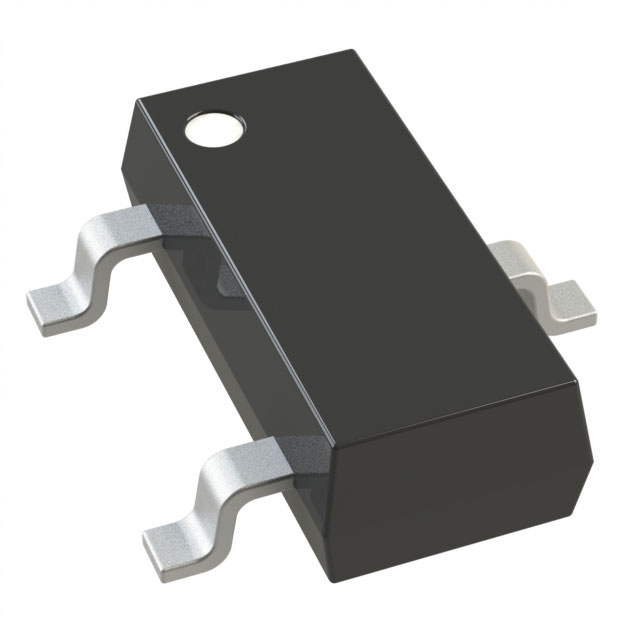

PZM15NB1,115
DIODE ZENER 15V 300MW SMT3Manufacturer: NXP USA Inc.
Categories: Single Zener Diodes
Quality Control: Learn More
NXP USA Inc. PZM15NB1-115 is a 15V Zener diode with a maximum power dissipation of 300mW. This component features a tight ±2% voltage tolerance and a low reverse leakage current of 70 nA at 11V. The Zener impedance (Zzt) is specified at a maximum of 15 Ohms. Designed for surface mounting, it is supplied in an SMT3 MPAK package, commonly known as TO-236-3, SC-59, or SOT-23-3, delivered on tape and reel. The forward voltage (Vf) is a maximum of 1.1V at 100mA. This Zener diode is suitable for applications in power management, voltage regulation, and transient suppression across various industrial sectors. Its operating temperature range is from -65°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±2% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 150°C |
| Voltage - Zener (Nom) (Vz) | 15 V |
| Impedance (Max) (Zzt) | 15 Ohms |
| Supplier Device Package | SMT3; MPAK |
| Power - Max | 300 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 70 nA @ 11 V |
