PDTA113EMB,315
TRANS PREBIAS PNP 50V 0.1A 3DFNManufacturer: NXP USA Inc.
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 180 MHz 250 mW Surface Mount DFN1006B-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 1.5mA, 30mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 40mA, 5V |
| Supplier Device Package | DFN1006B-3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 250 mW |
| Frequency - Transition | 180 MHz |
| Resistor - Base (R1) | 1 kOhms |
| Resistor - Emitter Base (R2) | 1 kOhms |
Request a Quote
Clients Also Buy

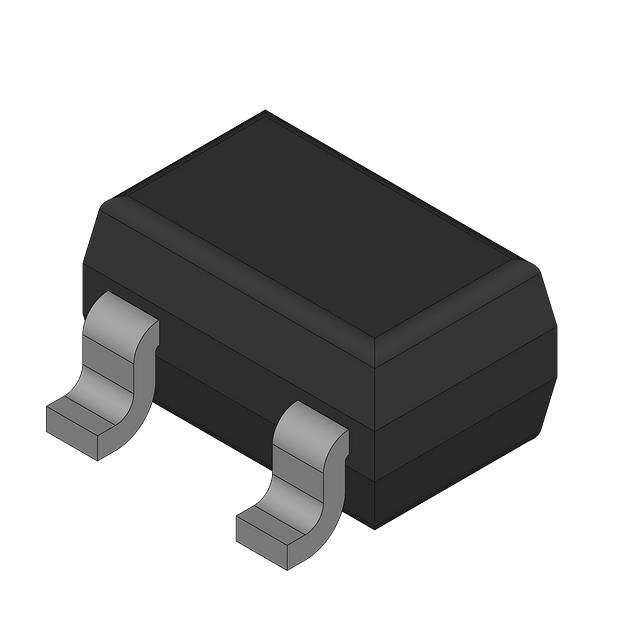

PDTD114EU135
