PMN70XPE,115

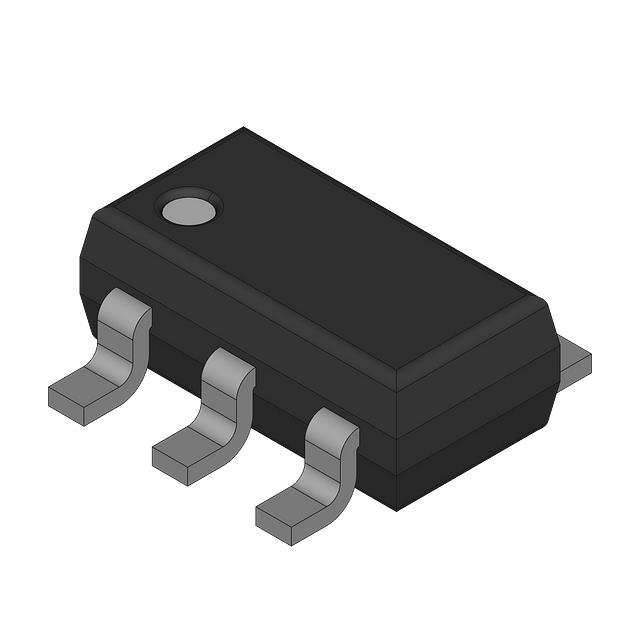

NOW NEXPERIA PMN70XPE - SC-74Manufacturer: NXP USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 3.2A (Ta) 500mW (Ta), 6.25W (Tc) Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 2A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta), 6.25W (Tc) |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 7.8 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 602 pF @ 10 V |
Request a Quote
