PMN27XPE115
SMALL SIGNAL FETManufacturer: NXP USA Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

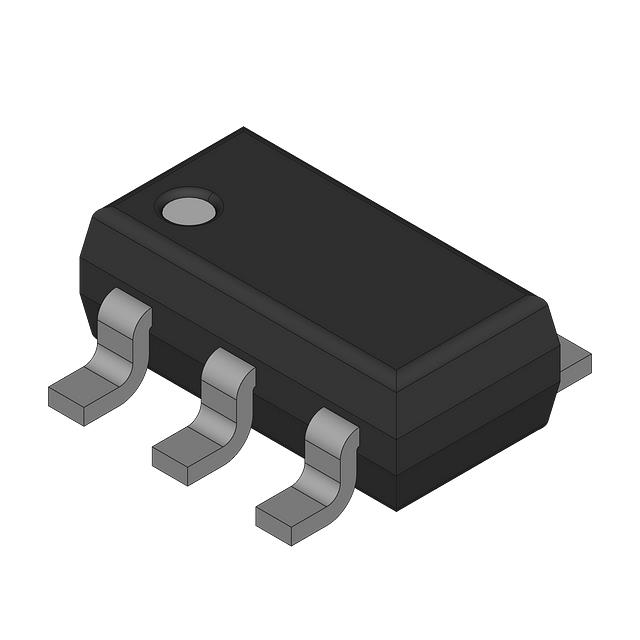

P-Channel 20 V 4.4A (Ta) 530mW (Ta), 8.33W (Tc) Surface Mount 6-TSOP
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 3A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 530mW (Ta), 8.33W (Tc) |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Supplier Device Package | 6-TSOP |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 22.5 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1770 pF @ 10 V |
