PMEG6010AESBC315
RECTIFIER DIODE, SCHOTTKYManufacturer: NXP USA Inc.
Categories: Single Diodes
Quality Control: Learn More

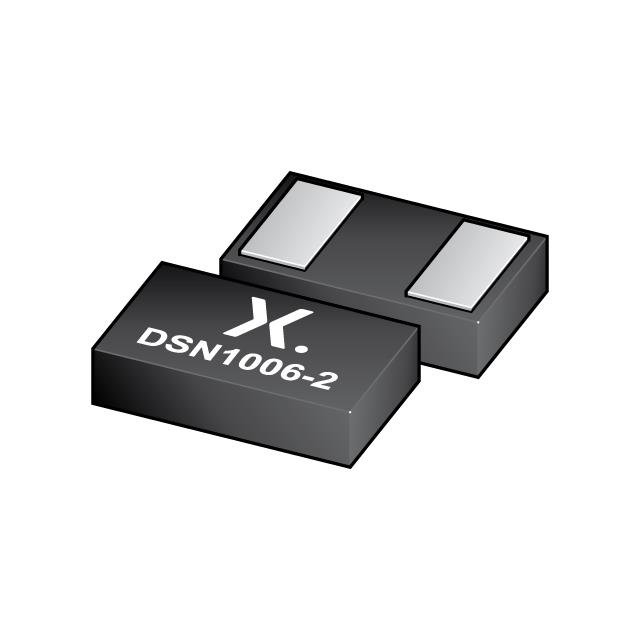

Diode 60 V 1A Surface Mount DSN1006-2
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.4 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 20pF @ 10V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | DSN1006-2 |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 625 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 650 µA @ 60 V |
Request a Quote
