PMEG2005EPK,315
NOW NEXPERIA PMEG2005EPK - RECTIManufacturer: NXP USA Inc.
Categories: Single Diodes
Quality Control: Learn More

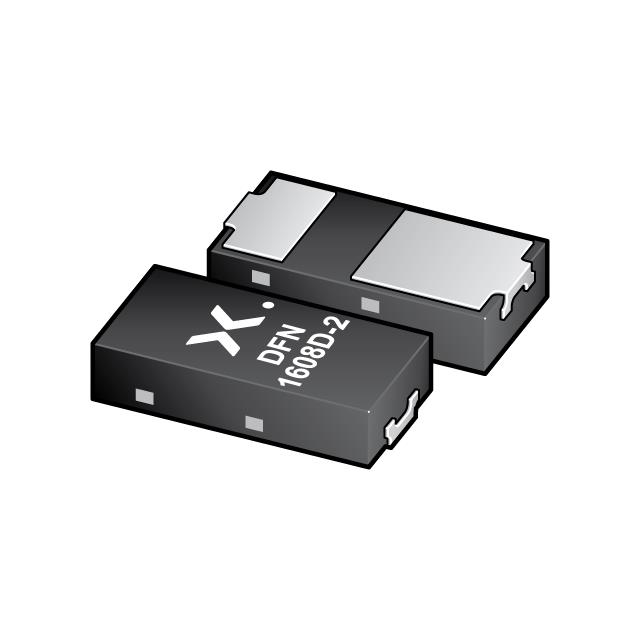

Diode 20 V 500mA Surface Mount DFN1608D-2
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3 ns |
| Technology | Schottky |
| Capacitance @ Vr, F | 35pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | DFN1608D-2 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 410 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 130 µA @ 10 V |
Request a Quote
