BAW62,133
DIODE GEN PURP 75V 250MA ALF2Manufacturer: NXP USA Inc.
Categories: Single Diodes
Quality Control: Learn More

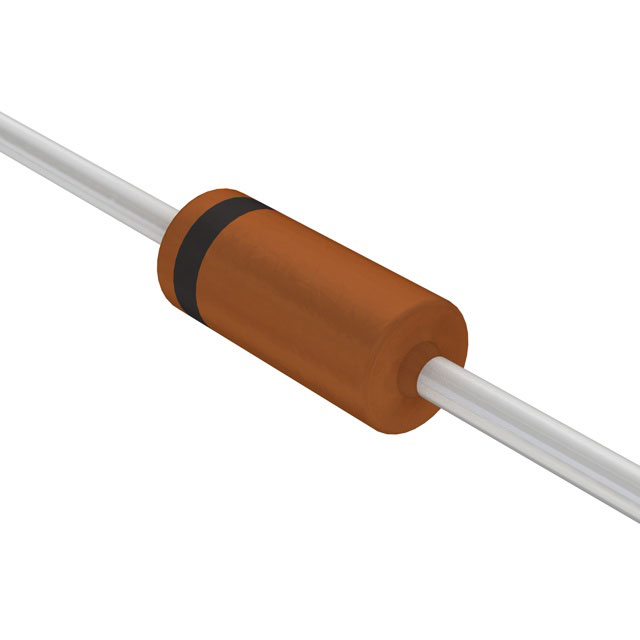

Diode 75 V 250mA Through Hole ALF2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Box (TB)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 250mA |
| Supplier Device Package | ALF2 |
| Operating Temperature - Junction | 200°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
