PTN3816EWY
4-LANE DISPLAY PORT LIN REDRIVERManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

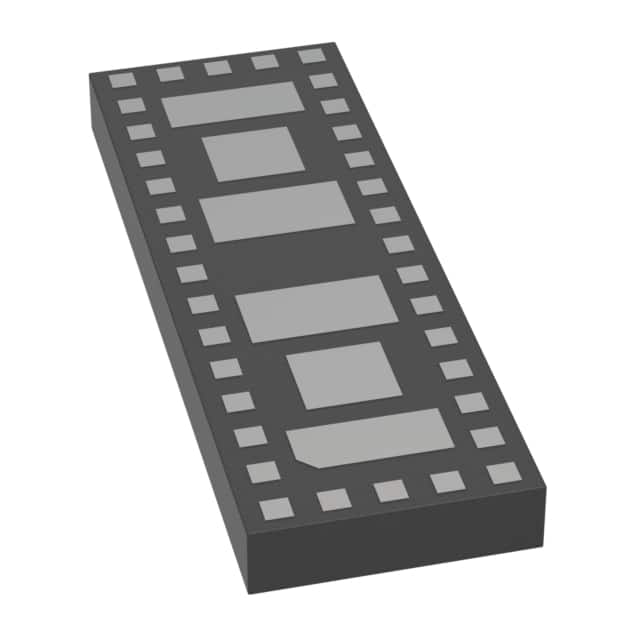

NXP USA Inc. PTN3816EWY is a 4-lane DisplayPort ReDriver designed for high-speed signal integrity in demanding applications. This component offers a maximum data rate of 20Gbps per lane, enabling robust performance for DisplayPort 1.4 and higher standards. Featuring advanced input equalization, the PTN3816EWY effectively compensates for signal degradation over longer trace lengths and through various interconnects.
With four differential channels, it provides comprehensive signal conditioning for multi-display setups or complex routing scenarios. The device operates from a 1.7V to 1.9V supply and has a typical supply current of 250mA. The 36-HWFLGA (2.1x6) package with an exposed pad ensures efficient heat dissipation and reliable surface mounting. Industries benefiting from this ReDriver include automotive, consumer electronics, and data communications where high-resolution video transmission is critical. The PTN3816EWY is supplied in Tape & Reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFLGA Exposed Pad |
| Delay Time | 70ps |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | ReDriver |
| Input | Differential |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | DisplayPort |
| Current - Supply | 250mA |
| Data Rate (Max) | 20Gbps |
| Supplier Device Package | 36-HWFLGA (2.1x6) |
| Signal Conditioning | Input Equalization |
| Capacitance - Input | 10 pF |
