PTN38007EWY
IC USB4 / MULTIPRO REDRIVERManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

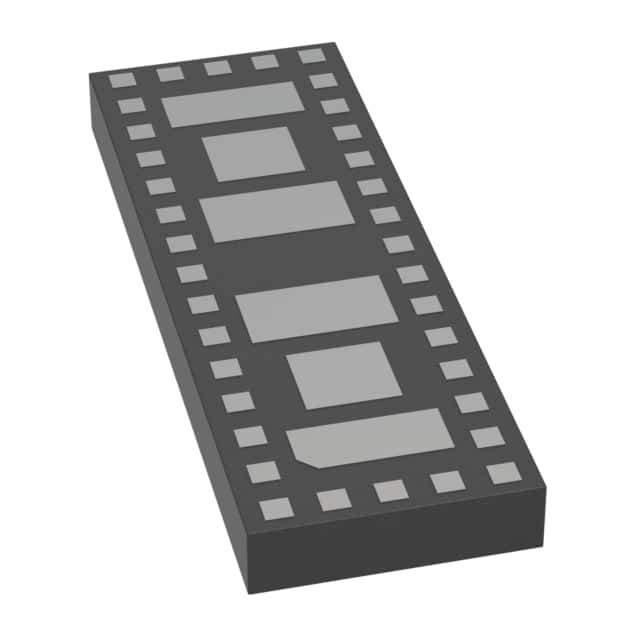

NXP USA Inc. PTN38007EWY is a 4-channel ReDriver designed for high-speed data transmission up to 20Gbps. This component is engineered for signal integrity enhancement, featuring input equalization and output pre-emphasis. The PTN38007EWY supports critical interfaces such as USB4 and DisplayPort over USB Type-C connections, making it suitable for demanding applications in consumer electronics, computing, and mobile devices. Its 36-HWFLGA (2.1x6) package with an exposed pad is optimized for surface mounting. Operating within a voltage range of 1.7V to 1.9V and drawing a maximum supply current of 250mA, this ReDriver maintains signal integrity with a typical delay of 70ps. Packaged in a Tape & Reel (TR), it is supplied in a 36-WFLGA case.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFLGA Exposed Pad |
| Delay Time | 70ps |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | ReDriver |
| Input | Differential |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | DisplayPort, USB Type C |
| Current - Supply | 250mA |
| Data Rate (Max) | 20Gbps |
| Supplier Device Package | 36-HWFLGA (2.1x6) |
| Signal Conditioning | Input Equalization, Output Pre-Emphasis |
| Capacitance - Input | 10 pF |
