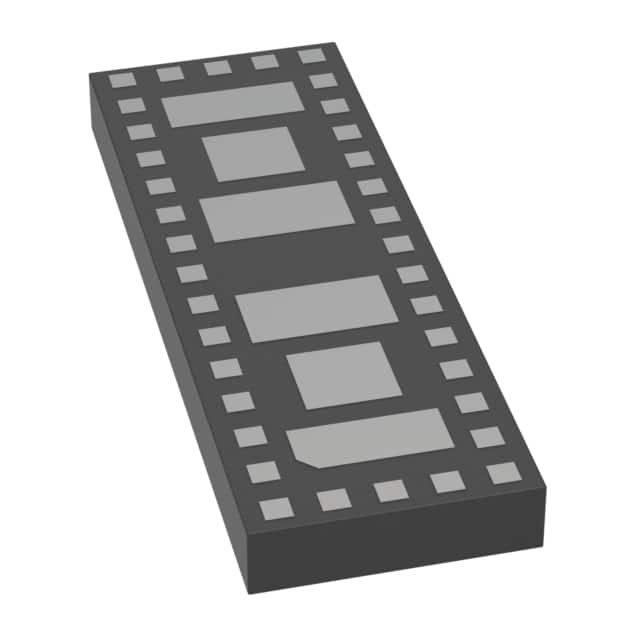

PTN38003AEWY
IC USB-C 3.2 / DP1.4 REDRIVERManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
The NXP USA Inc. PTN38003AEWY is a 4-channel ReDriver designed for high-speed data transmission. This component supports USB-C 3.2 and DisplayPort 1.4 specifications, offering a maximum data rate of 10Gbps per channel. It features advanced signal conditioning capabilities, including input equalization and output pre-emphasis, to mitigate signal degradation over longer traces or through connectors. The PTN38003AEWY is housed in a compact 36-WFLGA exposed pad package and is suitable for surface mount applications. With a supply voltage range of 1.7V to 1.9V and a low supply current of 250mA, it is an efficient solution for applications requiring robust signal integrity. Its differential inputs and outputs are optimized for signal buffering and redriving. This component finds application in systems utilizing USB Type C and DisplayPort interfaces, common in consumer electronics and computing platforms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFLGA Exposed Pad |
| Delay Time | 70ps |
| Number of Channels | 4 |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | ReDriver |
| Input | Differential |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | DisplayPort, USB Type C |
| Current - Supply | 250mA |
| Data Rate (Max) | 10Gbps |
| Supplier Device Package | 36-HWFLGA (2.1x6) |
| Signal Conditioning | Input Equalization, Output Pre-Emphasis |
| Capacitance - Input | 10 pF |
