PTN36502HQX
IC REDRIVER USB 3.1 & DP 1.2 QFNManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More

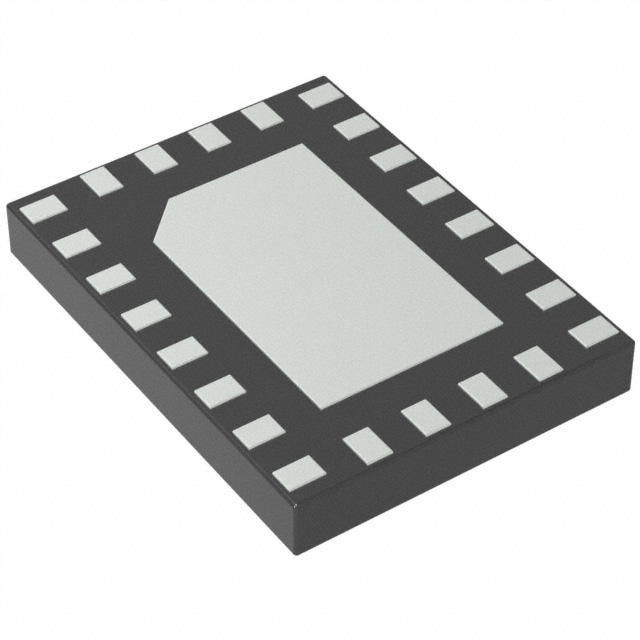

NXP USA Inc. PTN36502HQX is a USB 3.1 and DisplayPort 1.2 Redriver designed for high-speed signal integrity. This buffer/re-driver operates at a maximum data rate of 5.4Gbps, offering 140ps of delay. It features input equalization and output de-emphasis for robust signal conditioning. The PTN36502HQX is packaged in a 24-XFQFN exposed pad (2.4x3.2) and is supplied on tape and reel. With a supply voltage range of 1.7V to 1.9V and a current draw of 225mA, it is suitable for demanding applications. This component is commonly utilized in USB Type-C implementations and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-XFQFN Exposed Pad |
| Delay Time | 140ps |
| Number of Channels | - |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | Buffer, ReDriver |
| Input | Differential |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | USB Type C |
| Current - Supply | 225mA |
| Data Rate (Max) | 5.4Gbps |
| Supplier Device Package | 24-HX2QFN (2.4x3.2) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
