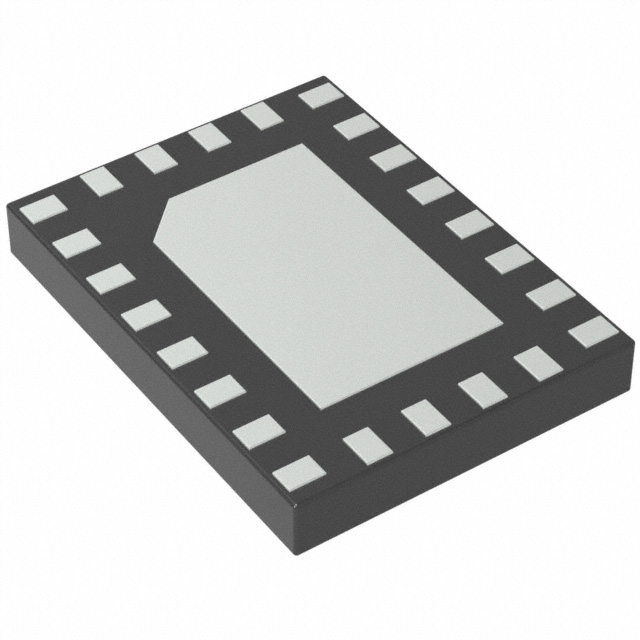

PTN36502AHQX
IC REDRIVER USB 3.1 & DP 1.2 QFNManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
NXP USA Inc. PTN36502AHQX is a 5.4Gbps USB 3.1 & DisplayPort 1.2 Redriver. This buffer/re-driver features 1.7V to 1.9V supply voltage and a low supply current of 225mA. Designed for high-speed signal integrity, it incorporates input equalization and output de-emphasis for robust performance. The device operates across a temperature range of -40°C to 85°C. Its 24-HX2QFN (2.4x3.2) package with an exposed pad is suitable for surface mount applications. This component is vital for applications requiring reliable data transmission in USB Type-C implementations.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-XFQFN Exposed Pad |
| Delay Time | 140ps |
| Number of Channels | - |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | Buffer, ReDriver |
| Input | Differential |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | USB Type C |
| Current - Supply | 225mA |
| Data Rate (Max) | 5.4Gbps |
| Supplier Device Package | 24-HX2QFN (2.4x3.2) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Capacitance - Input | 10 pF |
