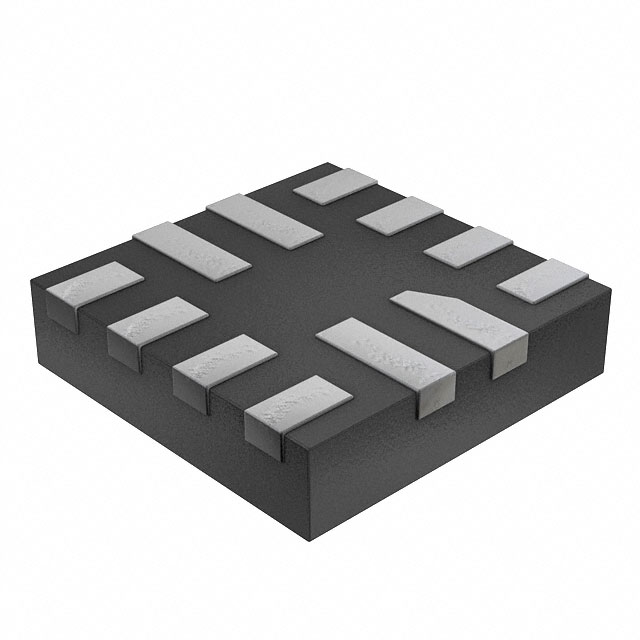

PTN36241GHXAZ
IC REDRIVER USB 3.0 12X2QFNManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
NXP USA Inc. PTN36241GHXAZ is a 2-channel USB 3.0 ReDriver operating at 5Gbps. This buffer IC features selectable input equalization and output de-emphasis for robust signal conditioning. Designed for surface mount applications, it is supplied in a 12-X2QFN (1.25x2.10) package and is available on tape and reel. The device operates from a 1.7V to 1.9V supply with a typical current consumption of 105mA. The PTN36241GHXAZ is suitable for various applications requiring high-speed data transmission, including computing and consumer electronics. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-XFQFN |
| Delay Time | 500ps |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Output | - |
| Type | Buffer, ReDriver |
| Input | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | USB 3.0 |
| Current - Supply | 105mA |
| Data Rate (Max) | 5Gbps |
| Supplier Device Package | 12-X2QFN (1.25x2.10) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
