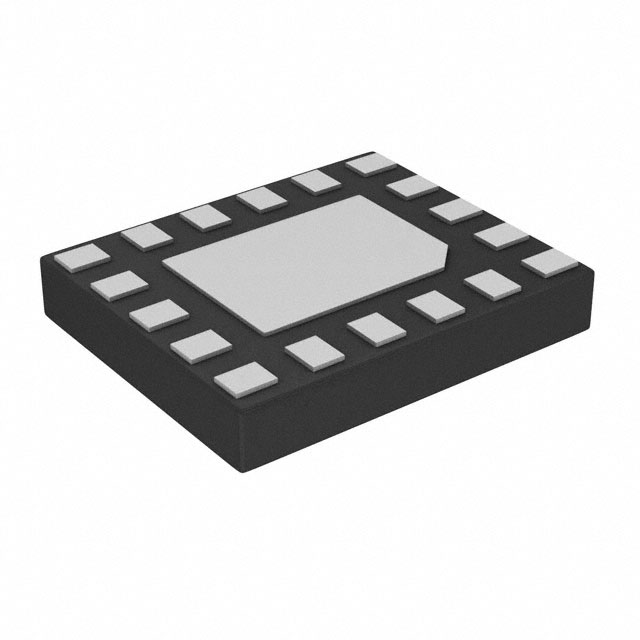

PTN36043BXZ
IC REDRIVER USB 3.0 18DHXQFNManufacturer: NXP USA Inc.
Categories: Signal Buffers, Repeaters, Splitters
Quality Control: Learn More
NXP USA Inc. PTN36043BXZ is a 2-channel USB 3.0 ReDriver designed for signal integrity enhancement in high-speed data transmission. This buffer utilizes input equalization and output de-emphasis to compensate for channel impairments, ensuring reliable data flow. Packaged in an 18-X2QFN (2.4x2) with an exposed pad for efficient thermal management, it supports surface mount installation. The device operates within a voltage range of 1.7V to 1.9V and draws a supply current of 113mA. The PTN36043BXZ is suitable for applications requiring robust USB 3.0 connectivity, commonly found in computing, consumer electronics, and data storage systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-XFQFN Exposed Pad |
| Delay Time | - |
| Number of Channels | 2 |
| Mounting Type | Surface Mount |
| Output | Differential |
| Type | Buffer, ReDriver |
| Input | Differential |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 1.9V |
| Applications | USB |
| Current - Supply | 113mA |
| Data Rate (Max) | - |
| Supplier Device Package | 18-X2QFN (2.4x2) |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
