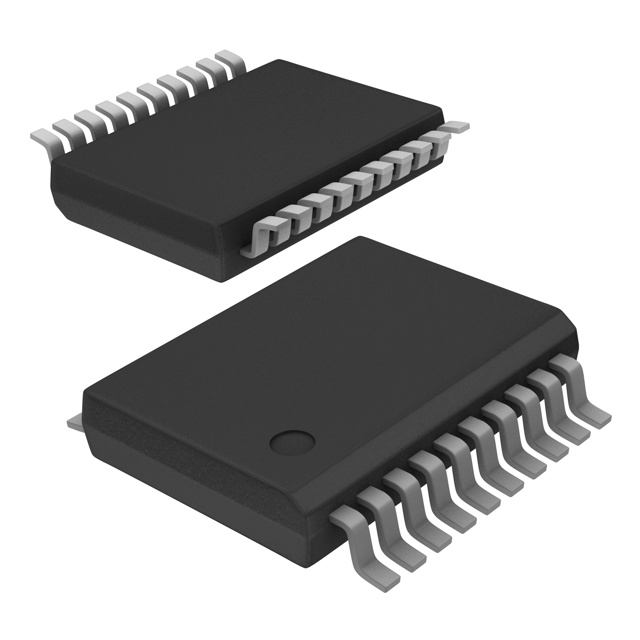

PCF7941ATSM2AB120,
IC REMOTE KEYLESS ENTRY 20SSOPManufacturer: NXP USA Inc.
Categories: RF Transmitters
Quality Control: Learn More
NXP USA Inc. presents the PCF7941ATSM2AB120, an advanced RF Transmitter designed for secure remote keyless entry systems. This component operates across multiple UHF frequencies, including 315MHz, 434MHz, and 868MHz, supporting both ASK and FSK modulation schemes. It features a powerful PLL frequency synthesizer and integrated Power Amplifier (PA), delivering a robust 9.8dBm output power.
The PCF7941ATSM2AB120 facilitates a data rate of up to 4.8kbps via its RS232 interface, enabling efficient communication for command and control functions. With a supply voltage range of 2.1V to 3.6V, it is suitable for a wide array of automotive and general-purpose applications requiring reliable wireless command transmission. The device is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PLL Frequency Synthesizer and PA |
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Mounting Type | - |
| Frequency | 315MHz, 434MHz, 868MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, FSK, UHF |
| Data Interface | RS232 |
| Operating Temperature | - |
| Voltage - Supply | 2.1V ~ 3.6V |
| Power - Output | 9.8dBm |
| Applications | General Purpose |
| Data Rate (Max) | 4.8kbps |
| Current - Transmitting | - |
| Antenna Connector | Not Included |
| Supplier Device Package | - |
| Programmable | Not Verified |
