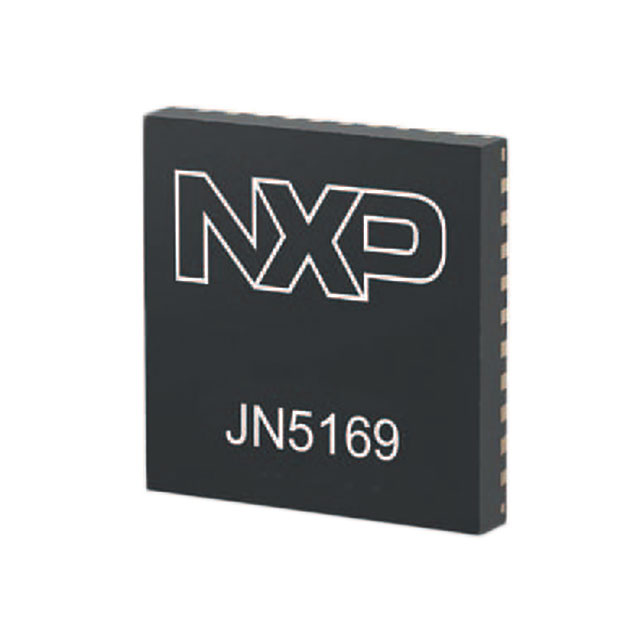

JN5169-001-M03-2Z
RF TXRX MODULE 802.15.4U.FL SMDManufacturer: NXP USA Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
NXP USA Inc. JN5169-001-M03-2Z is a 2.4GHz IEEE 802.15.4 compliant RF transceiver module with a U.FL connector for external antenna attachment. This surface mount device operates within the 2.4GHz to 2.5GHz frequency band, supporting the Zigbee® protocol. Key specifications include a transmit power of 10dBm, a receive sensitivity of -96dBm, and typical operating currents of 17mA (receiving) and 25mA (transmitting). The module integrates 512kB of Flash memory, 4kB of EEPROM, and 32kB of RAM. It offers flexible connectivity through I2C, SPI, and UART serial interfaces. The JN5169-001-M03-2Z is designed for applications in smart home automation, industrial control, and wireless sensor networks, operating across a temperature range of -40°C to 85°C. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 27-SMD Module |
| Sensitivity | -96dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz |
| Memory Size | 512kB Flash, 4kB EEPROM, 32kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | - |
| Protocol | Zigbee® |
| Current - Receiving | 17mA |
| Current - Transmitting | 25mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
