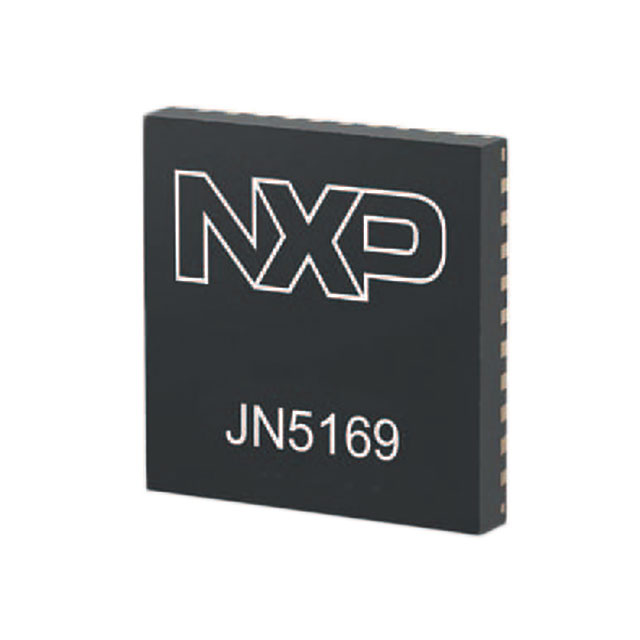

JN5169-001-M00-2Z
RF TXRX MOD 802.15.4 TH SMDManufacturer: NXP USA Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
NXP USA Inc. JN5169-001-M00-2Z is an 802.15.4 Zigbee® transceiver module operating within the 2.4GHz to 2.5GHz frequency band. This surface mount component features an integrated trace antenna and is supplied on tape and reel. The module incorporates 512kB of Flash memory, 4kB of EEPROM, and 32kB of RAM. Transmit power is rated at 10dBm, with a receive sensitivity of -96dBm. Typical current consumption is 17mA during reception and 25mA during transmission. Supported serial interfaces include I2C, SPI, and UART. Operating voltage ranges from 2V to 3.6V, with an operating temperature range of -40°C to 85°C. This module is suitable for applications in smart home automation, industrial control, and wireless sensor networks.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 27-SMD Module |
| Sensitivity | -96dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 2.5GHz |
| Memory Size | 512kB Flash, 4kB EEPROM, 32kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.6V |
| Power - Output | 10dBm |
| Data Rate | - |
| Protocol | Zigbee® |
| Current - Receiving | 17mA |
| Current - Transmitting | 25mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
