JN5168MOD/02Z
RF TXRX MOD 802.15.4 THManufacturer: NXP USA Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
NXP USA Inc.’s JN5168MOD-02Z is an 802.15.4 compliant RF transceiver module operating in the 2.4GHz to 2.5GHz band. This module features an integrated trace antenna and supports O-QPSK modulation with a data rate of 1Mbps. It includes 256kB of Flash memory, 4kB of EEPROM, and 32kB of RAM. The JN5168MOD-02Z offers excellent receiver sensitivity of -95dBm and a transmit power of 2.5dBm. Power consumption is efficient, with 17mA in receive mode and 15mA in transmit mode. Communication interfaces include I2C, SPI, and UART. This module is suitable for applications in smart home automation, industrial control, and wireless sensor networks requiring robust, low-power wireless connectivity. It operates across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Sensitivity | -95dBm |
| Mounting Type | - |
| Frequency | 2.4GHz ~ 2.5GHz |
| Memory Size | 256kB Flash, 4kB EEPROM, 32kB RAM |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2V ~ 3.6V |
| Power - Output | 2.5dBm |
| Data Rate | 1Mbps |
| Protocol | Zigbee® |
| Current - Receiving | 17mA |
| Current - Transmitting | 15mA |
| Antenna Type | Integrated, Trace |
| Utilized IC / Part | - |
| Modulation | O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

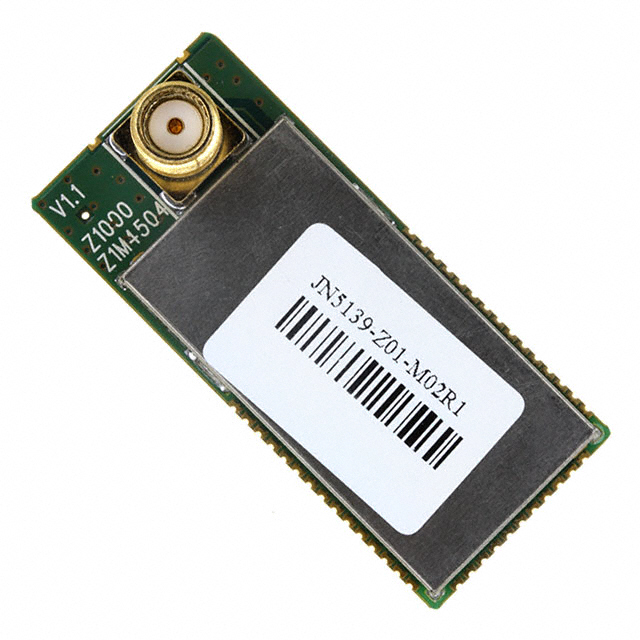

JN5139-Z01-M/03R1T
