JN5148/001M03T,534

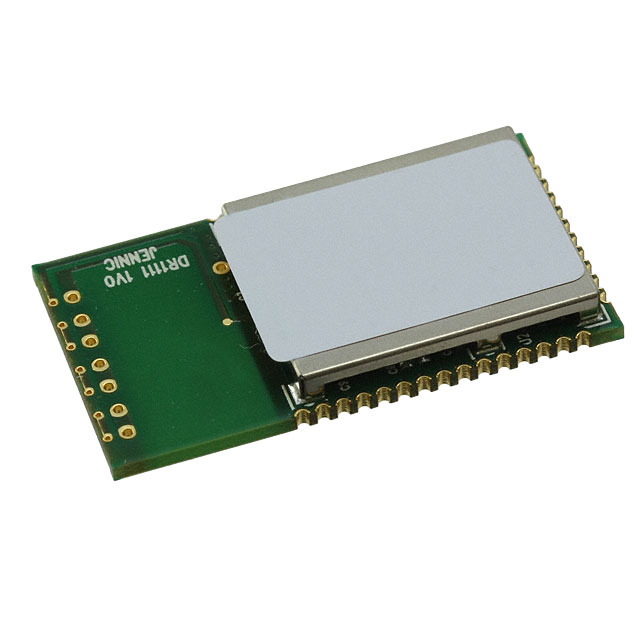

RF TXRX MODULE 802.15.4U.FL SMDManufacturer: NXP USA Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
NXP USA Inc. JN5148 Series 802.15.4 RF Transceiver Module, part number JN5148-001M03T-534. This surface mount module operates at 2.4GHz, supporting the 802.15.4 standard and Zigbee® protocol. It features 128kB ROM and 128kB RAM, with serial interfaces including I2C, SPI, and UART. The module offers a transmit power of 2.5dBm and a receive sensitivity of -95dBm. Typical current consumption during receiving and transmitting is 17.5mA. The JN5148-001M03T-534 is equipped with a U.FL connector for antenna attachment and is supplied in tape and reel packaging. Operating temperature range is -40°C to 85°C, with a supply voltage of 2.7V to 3.6V. This component is widely used in smart home, industrial automation, and wireless sensor network applications.
Additional Information
Series: JN5148RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB ROM, 128kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Power - Output | 2.5dBm |
| Data Rate | - |
| Protocol | Zigbee® |
| Current - Receiving | 17.5mA |
| Current - Transmitting | 17.5mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
