JN5139-001-M/04R1T
RF TXRX MODULE 802.15.4U.FL SMDManufacturer: NXP USA Inc.
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
NXP USA Inc. JN5139-001-M-04R1T is an 802.15.4 compliant RF transceiver module operating at 2.4GHz. This surface mount component, part of the JN5139-001-M0xR series, features a U.FL connector for antenna attachment. It offers robust wireless connectivity for Zigbee® networks. Key specifications include a transmit power of 19dBm and a receive sensitivity of -100dBm. On-chip memory comprises 192kB ROM and 96kB RAM. The module supports serial interfaces such as I2C, SPI, and UART. Typical operating voltage is between 2.2V and 3.6V, with current draw of 45mA during reception and 125mA during transmission. This module is suitable for applications in smart home automation, industrial control, and wireless sensor networks. The JN5139-001-M-04R1T is supplied in Tape & Reel packaging.
Additional Information
Series: JN5139-001-M0xRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Sensitivity | -100dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 192kB ROM, 96kB RAM |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 3.6V |
| Power - Output | 19dBm |
| Data Rate | - |
| Protocol | Zigbee® |
| Current - Receiving | 45mA |
| Current - Transmitting | 125mA |
| Antenna Type | Antenna Not Included, U.FL |
| Utilized IC / Part | - |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
JN5139-001-M/00R1T
RF TXRX MOD 802.15.4 TH SMD

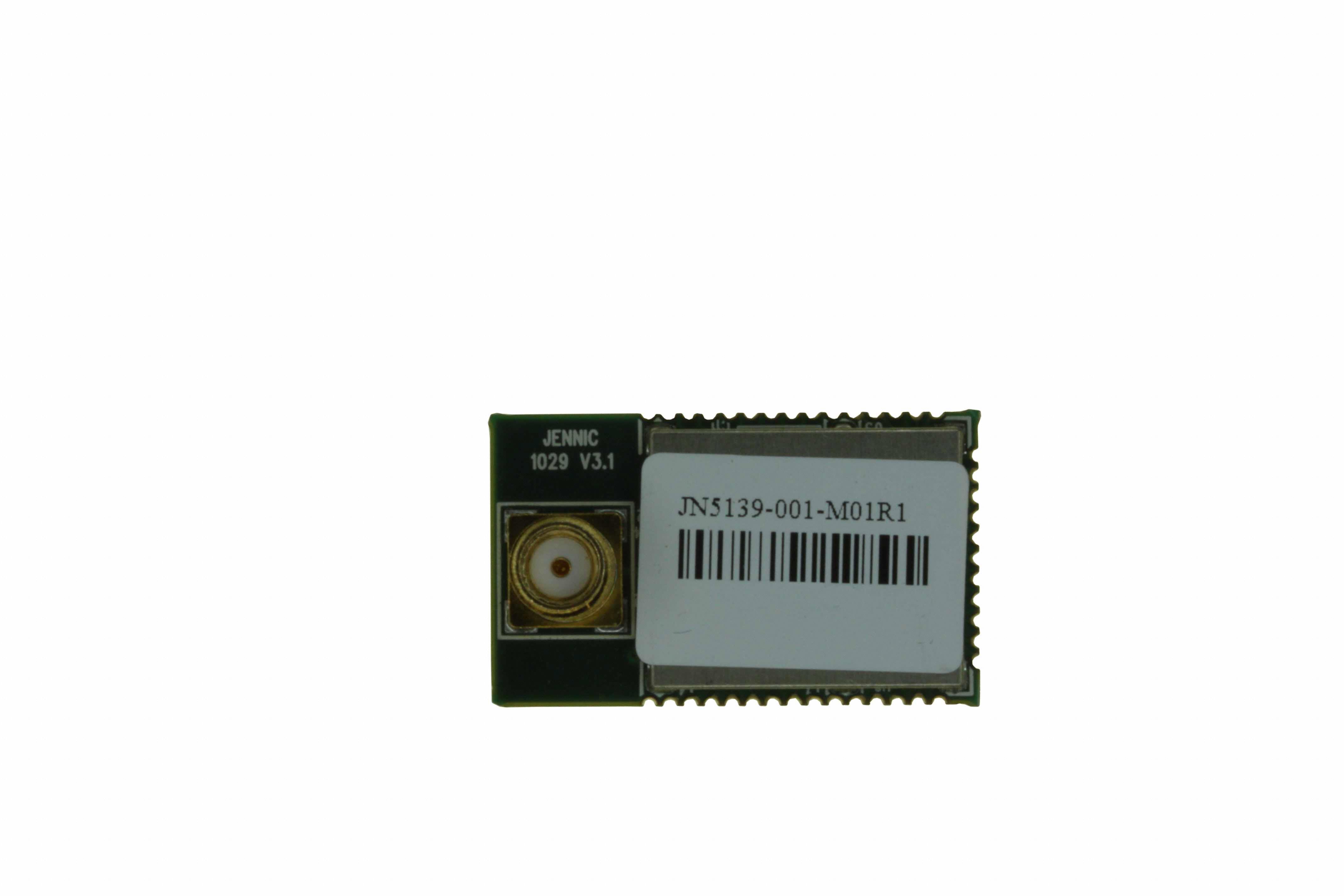

JN5139-001-M/01R1V
