QN9020/DY

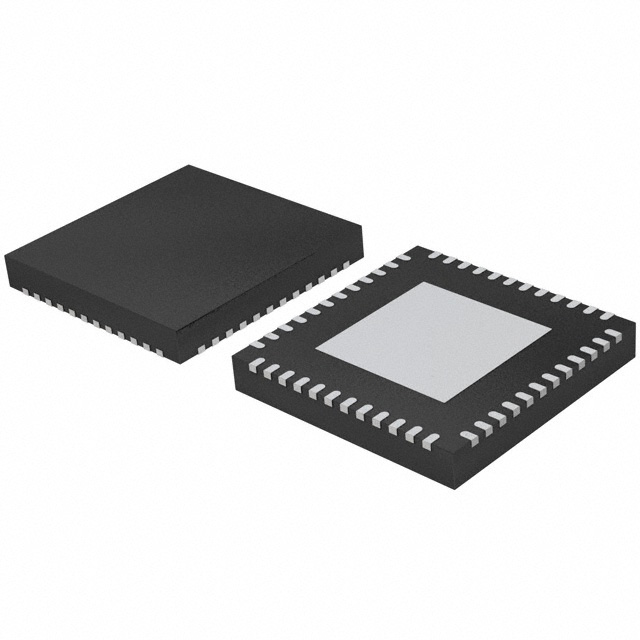

IC RF TXRX BLE 48HVQFNManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
NXP USA Inc.'s QN9020-DY is a Bluetooth v4.0 RF transceiver IC designed for low-power wireless applications. This device operates in the 2.4GHz ISM band and offers a transmit power of 4dBm. Receiver sensitivity is rated at -95dBm, with typical current consumption of 9.2mA during reception and 8.8mA during transmission. The QN9020-DY integrates 128kB of Flash memory and supports multiple serial interfaces including I2C, SPI, and UART, alongside 31 GPIO pins. Packaged in a 48-HVQFN (6x6) with exposed pad and supplied on tape and reel, this component is suitable for surface mount applications. It operates within a voltage range of 2.4V to 3.6V and an extended temperature range of -40°C to 85°C. This transceiver finds application in consumer electronics, wearable devices, and industrial IoT systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad |
| Sensitivity | -95dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 3.6V |
| Power - Output | 4dBm |
| Protocol | Bluetooth v4.0 |
| Current - Receiving | 9.2mA |
| Data Rate (Max) | - |
| Current - Transmitting | 8.8mA |
| Supplier Device Package | 48-HVQFN (6x6) |
| GPIO | 31 |
| Modulation | - |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
