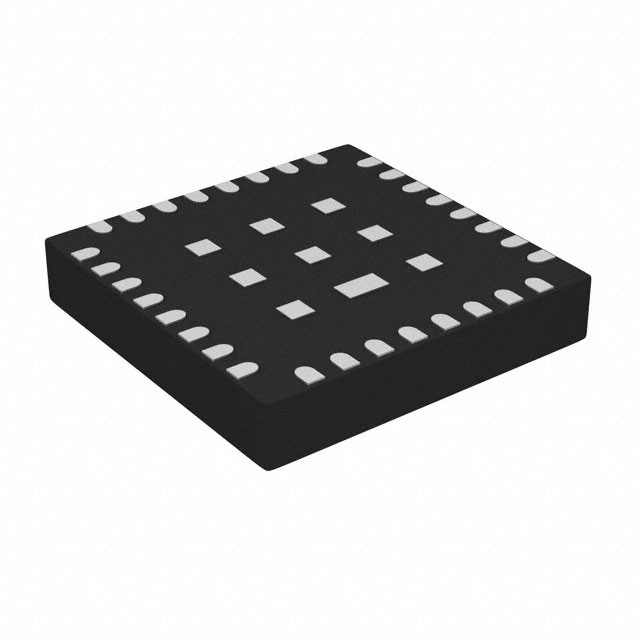

MKW30Z160VHM4
IC RF TXRX+MCU BLE 32QFNManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 32-VFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad |
| Sensitivity | -91dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 160kB Flash, 20kB SRAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.45V ~ 3.6V |
| Power - Output | 5dBm |
| Protocol | Bluetooth v4.1 |
| Current - Receiving | 6.5mA ~ 15.4mA |
| Data Rate (Max) | 1Mbps |
| Current - Transmitting | 8.4mA ~ 18.5mA |
| Supplier Device Package | 32-QFN (5x5) |
| GPIO | 15 |
| Modulation | GFSK |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
