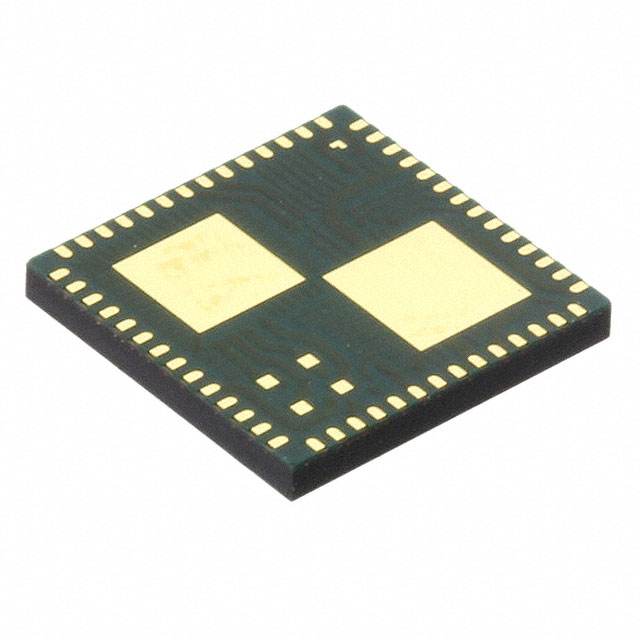

MKW01Z128CHNR
IC RF TXRX+MCU ISM<1GHZ 60VFLGAManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
The NXP USA Inc. MKW01Z128CHNR is a versatile RF transceiver with an integrated MCU, designed for general ISM band applications below 1GHz. This device operates across multiple frequency bands, including 290MHz to 340MHz, 424MHz to 510MHz, and 862MHz to 1.02GHz. It supports various modulation schemes such as FSK, GFSK, GMSK, MSK, and OOK, with a maximum data rate of 600kbps. The MKW01Z128CHNR features 128kB of Flash memory and 16kB of RAM, along with 6 GPIO pins and serial interfaces including I2C, SPI, and UART. Transmit power is rated up to 17dBm, and receiver sensitivity reaches -120dBm. The component is housed in a 60-VFLGA exposed pad package and is suitable for surface mounting. Typical applications span industrial automation, medical devices, and smart home systems. Operating temperature ranges from -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 60-VFLGA Exposed Pad |
| Sensitivity | -120dBm |
| Mounting Type | Surface Mount |
| Frequency | 290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz |
| Memory Size | 128kB Flash, 16kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | 17dBm |
| Protocol | - |
| Current - Receiving | 16mA ~ 17mA |
| Data Rate (Max) | 600kbps |
| Current - Transmitting | 16mA ~ 95mA |
| Supplier Device Package | 60-VFLGA (8x8) |
| GPIO | 6 |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
