MCR20AVHM

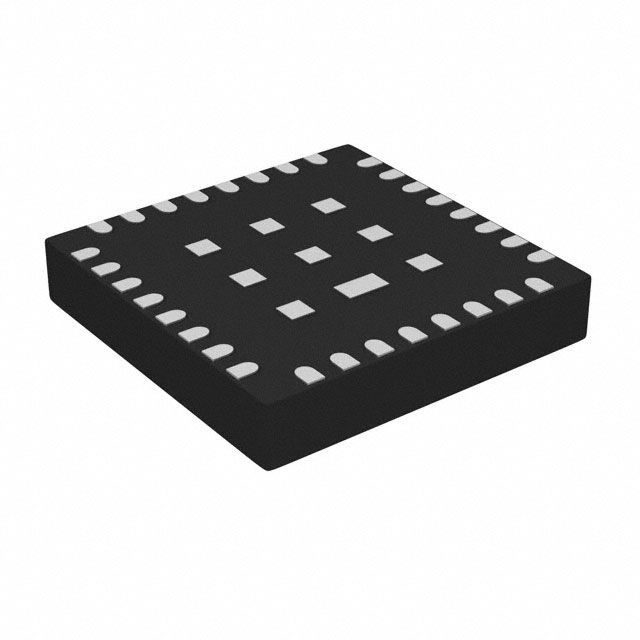

IC RF TXRX 802.15.4 41MAPLGAManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
NXP USA Inc. Presents the MCR20AVHM, a highly integrated RF transceiver IC operating exclusively in transmit/receive mode. This component is designed for 2.4GHz 802.15.4 applications, supporting O-QPSK modulation and achieving a maximum data rate of 250kbps. Key performance specifications include a transmit output power of 8dBm and a receive sensitivity of -102dBm. Power consumption is rated at approximately 17mA during transmission and 15mA to 19mA during reception. The MCR20AVHM features 8 configurable GPIO pins and utilizes an SPI serial interface for communication. It is housed in a compact 41-MAPLGA (5x5) package, suitable for surface mounting, and operates within a temperature range of -40°C to 105°C. The device requires a supply voltage between 1.8V and 3.6V. This transceiver is commonly employed in industrial automation, smart home, and wireless sensor network applications. Supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 41-VFLGA |
| Sensitivity | -102dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | 8dBm |
| Protocol | - |
| Current - Receiving | 15mA ~ 19mA |
| Data Rate (Max) | 250kbps |
| Current - Transmitting | 17mA |
| Supplier Device Package | 41-MAPLGA (5x5) |
| GPIO | 8 |
| Modulation | O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI |
| Programmable | Not Verified |
