MC13237CHT

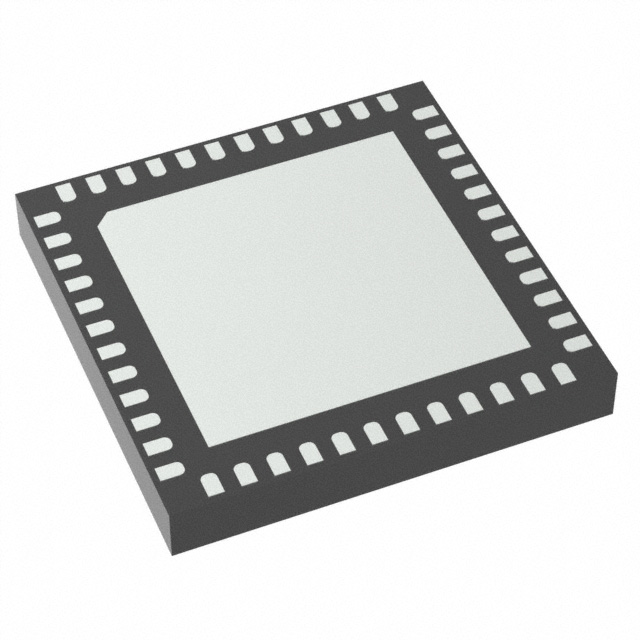

IC RF TXRX+MCU 802.15.4 48MAPLGAManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
The NXP USA Inc. MC13237CHT is a highly integrated RF transceiver and microcontroller solution operating at 2.4GHz, supporting the IEEE 802.15.4 standard. This device features a robust architecture with 128kB of Flash memory and 8kB of RAM, enabling complex application development. The transceiver supports O-QPSK modulation with a maximum data rate of 250kbps and offers a transmit power of 2dBm. Receiver sensitivity is rated at -93dBm, with typical receive currents of 22.3mA to 34.2mA and a transmit current of 26.6mA. On-board peripherals include 28 GPIO pins and serial interfaces such as I2C, SPI, and UART, facilitating seamless integration with other system components. The MC13237CHT is designed for surface mounting within a 48-VFQFN exposed pad package and operates across an industrial temperature range of -40°C to 85°C. This component is well-suited for applications in smart home automation, industrial control, and wireless sensor networks.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Sensitivity | -93dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 128kB Flash, 8kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8V ~ 3.6V |
| Power - Output | 2dBm |
| Protocol | - |
| Current - Receiving | 22.3mA ~ 34.2mA |
| Data Rate (Max) | 250kbps |
| Current - Transmitting | 26.6mA |
| Supplier Device Package | 48-MAPLGA (7x7) |
| GPIO | 28 |
| Modulation | O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI, UART |
| Programmable | Not Verified |
