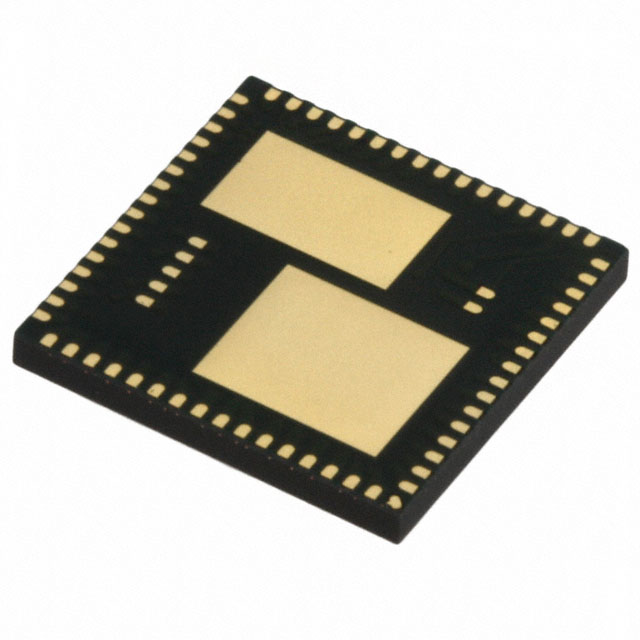

MC13213R2
IC RF TXRX+MCU 802.15.4 71LGAManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx + MCU 802.15.4 Zigbee® 2.4GHz 71-VFLGA Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 71-VFLGA Exposed Pad |
| Sensitivity | -92dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 60kB Flash, 4kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.4V |
| Power - Output | 3dBm |
| Protocol | Zigbee® |
| Current - Receiving | 37mA |
| Data Rate (Max) | 250kbps |
| Current - Transmitting | 30mA |
| Supplier Device Package | 71-LGA (9x9) |
| GPIO | 32 |
| Modulation | DSSS, O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI |
| Programmable | Not Verified |
Request a Quote
