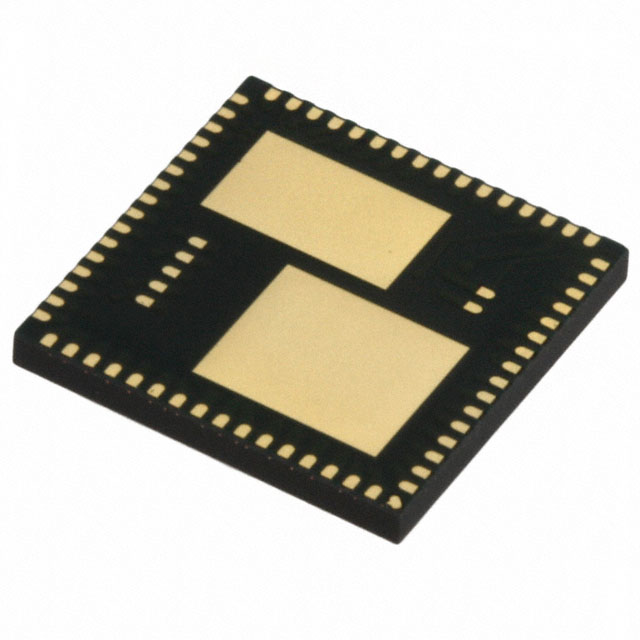

MC13211R2
IC RF TXRX+MCU 802.15.4 71LGAManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
NXP USA Inc. MC13211R2 is a highly integrated RF transceiver and microcontroller solution supporting the IEEE 802.15.4 standard. Operating in the 2.4GHz ISM band, this component offers a 250kbps data rate with DSSS and O-QPSK modulation. The device integrates a 16kB Flash and 1kB RAM microcontroller, providing ample resources for embedded applications. Key features include a transmit output power of 3dBm and a receive sensitivity of -92dBm, with typical current consumption of 37mA during receive and 30mA during transmit. Serial communication is supported via I2C and SPI interfaces, and the component features 32 GPIO pins. Packaged in a 71-LGA (9x9) with an exposed pad for enhanced thermal performance, the MC13211R2 is suitable for surface mount applications and operates across a -40°C to 85°C temperature range. This device finds application in wireless sensor networks, industrial automation, and smart home devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 71-VFLGA Exposed Pad |
| Sensitivity | -92dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz |
| Memory Size | 16kB Flash, 1kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.4V |
| Power - Output | 3dBm |
| Protocol | - |
| Current - Receiving | 37mA |
| Data Rate (Max) | 250kbps |
| Current - Transmitting | 30mA |
| Supplier Device Package | 71-LGA (9x9) |
| GPIO | 32 |
| Modulation | DSSS, O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, SPI |
| Programmable | Not Verified |
